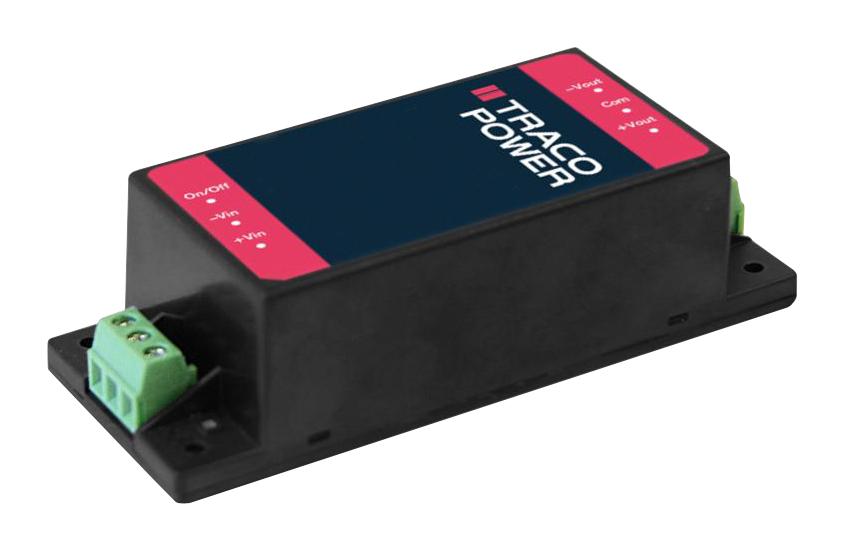

TRACO POWER TMDC102423 Industrial DC/DC Converter
The TMDC 10 series from Traco Power offers 10-watt fully encapsulated industrial DC/DC converters designed for harsh environments. With an ultrawide input voltage range of 9-36V or 18-75V DC, these modules provide regulated outputs with high efficiency up to 86%. They feature robust isolation of 3000 VDC, built-in EMC filters meeting EN 55032 and EN 55035 standards, and operate reliably from -40°C to +80°C without derating. Suitable for industrial applications requiring high isolation, EMC immunity, and compact design, these modules include safety certifications UL 62368-1 and IEC 62368-1 with remote on/off and DC-OK functions. Their rugged plastic housing is rated UL 94V-0.
TRACO POWER TMDC102423 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC with ultrawide 4:1 range
- Output Power: 10 Watt
- Efficiency: up to 86%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +80°C without derating
- Dimensions: 3.11" x 1.34" x 0.87" (79 x 34 x 22 mm)
- Protection: overload, undervoltage, short circuit, auto recovery
- Safety Certifications: UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55032 class A, EN 55035
- Housing Material: UL 94V-0 rated plastic
- Features: DC-OK LED, remote on/off, wire screw terminal connection
- Response Time: 60 ms
- Ripple & Noise: 90-180 mVp-p depending on output
- Minimum Load: not required
Buy the Traco Power TMDC 10 Series – Reliable Industrial DC/DC Converter for Harsh Environments
Enhance your industrial power systems with the TMDC 10 series from Traco Power, featuring rugged design, wide input voltage range, high efficiency, and high isolation. Perfect for challenging environments, these 10-watt modules offer excellent EMC immunity, safety certifications, and reliable operation from -40°C to +80°C without derating. With built-in EMC filters, remote on/off, and DC-OK indicator, they ensure seamless integration into your automation or control systems. Order online today to secure a durable, efficient power conversion solution tailored for industrial applications.
Buy Traco Power TMDC 10 Series now and experience unmatched reliability and performance for industrial power supply needs.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC102423?
You can click on the BUY or RFQ button to purchase TMDC102423 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC102423?
You can download the TMDC102423 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC102423?
TRACO POWER
