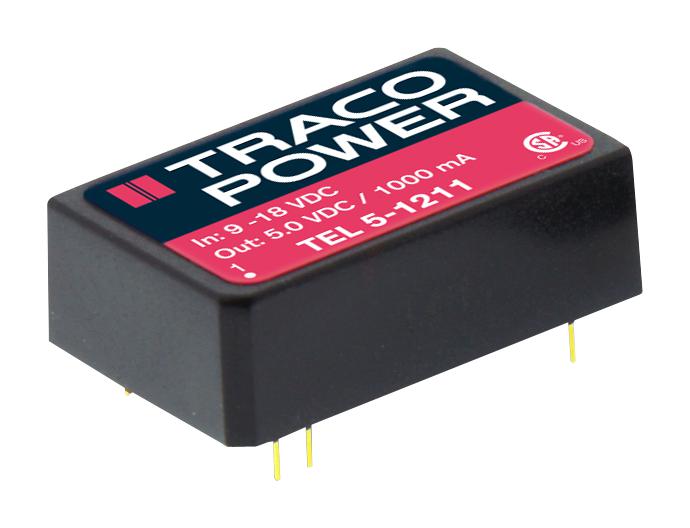

TRACO POWER TEL51211 DC/DC Converter Module
The POWER TEL 5 Series is a compact 5-watt DC/DC converter module designed for industrial and consumer electronics. It features a wide 2:1 input range, high efficiency up to 86%, and regulated outputs with 1500 VDC isolation. Its SMD design ensures high reliability with a MTBF over 1 million hours and is RoHS compliant. Suitable for full load operation from -40°C to +85°C, it offers excellent cost-performance ratio, meets EN 55022 Class A standards, and provides automatic short-circuit protection, making it ideal for many cost-critical applications.
TRACO POWER TEL51211 DC/DC Converter Module Specifications:
- Input Voltage Range: 9-18 VDC, 12 VDC nominal, 18-36 VDC, 24 VDC nominal
- Output Voltage & Current: 3.3 VDC 1200 mA, 5 VDC 1000 mA, 12 VDC 500 mA, 15 VDC 200 mA, 24 VDC 500 mA
- Efficiency: Up to 86%
- Isolation Voltage: 1500 VDC
- MTBF: Greater than 1 million hours
- Operating Temperature: -40°C to +85°C
- Humidity: Up to 95% RH non-condensing
- Ripple & Noise: 75 mV peak-to-peak
- Dimensions: Length 22.86 mm, Width 11 mm, Height 9 mm
- Protection: Automatic short-circuit, reverse voltage 1A max
- Soldering Temp: Max 265°C / 10 sec.
- Compliance: UL, ROHS, EN 55022 Class A, FCC Part 15 Level A
Buy the Traco Power Series TEL 5 DC/DC Converter: TEL51211
Purchase the Traco Power Series TEL 5 TEL51211 online today for a dependable 5-watt power conversion solution. Its wide input voltage range of 9-18 VDC ensures compatibility with various power sources, while the high efficiency of up to 86% reduces energy loss. The module features 1500 VDC isolation, comprehensive safety certifications, and automatic short-circuit protection for secure operation. Its compact size and wide operating temperature range make it ideal for industrial and consumer electronics, delivering unmatched performance, reliability, and cost savings.
Order your Traco Power Series TEL 5 TEL51211 today and ensure reliable power conversion for your industrial and consumer projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL51211?
You can click on the BUY or RFQ button to purchase TEL51211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL51211?
You can download the TEL51211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL51211?
TRACO POWER
