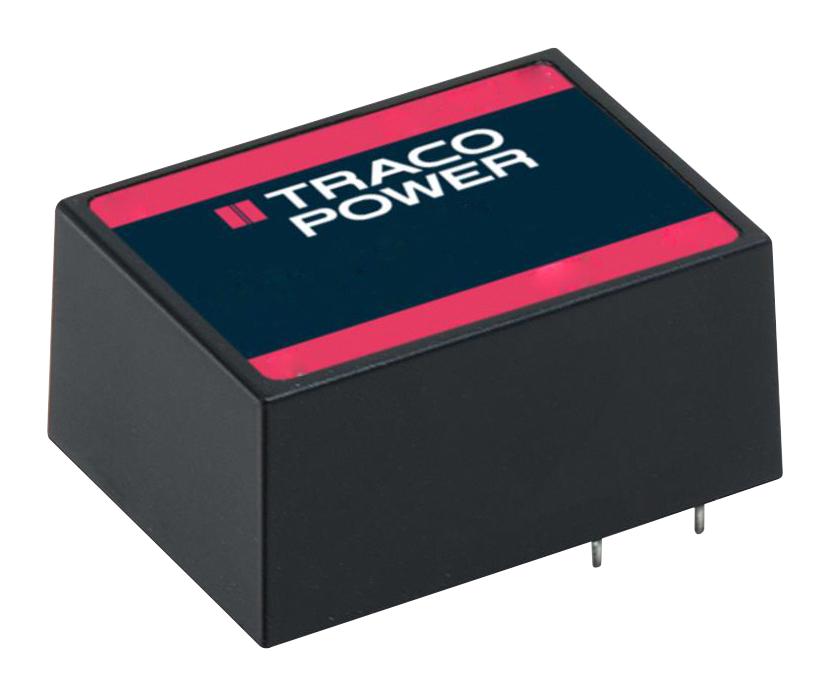

TRACO POWER TMPW10115 Power Supply Module
The TMPW 10 Series is a compact 10 Watt AC/DC power supply designed for industrial and household applications. It features a wide input voltage range of 90-305 VAC, high efficiency up to 86%, and an operational temperature range from -40°C to +70°C. The power supply offers reinforced insulation, 47000 VAC isolation, and internal EMC filters, making it ideal for safety-critical environments. Its small size and low no-load power consumption (<0.1W) support energy-efficient systems, while certifications like IEC/EN/UL 62368-1 ensure compliance with safety standards.
TRACO POWER TMPW10115 Power Supply Module Specifications:
- Power: 10 Watt
- Input Voltage: 90-305 VAC (Full Range), 100-250 VDC
- Input Frequency: 47-63 Hz (designed for 47-440 Hz)
- Output Voltage Options: 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Output Current Max: 2A (5 V), 0.833A (12 V), 0.667A (15 V), 0.417A (24 V)
- Efficiency: Up to 86%
- Operating Temperature: -40°C to +70°C
- Isolation Voltage: 47000 VAC
- Protection Class: II (reinforced insulation)
- Standby Power: <0.1W
- Dimensions: 1.46" x 1.08" x 0.74" (approx. 37mm x 27.5mm x 19mm)
- Weight: 31g
- Safety Certifications: IEC/EN/UL 62368-1, EN 60335-1
- EMC: EN 55032 Class B internal filter
- Short Circuit Protection: Continuous, auto-recovery
- Overvoltage Protection: 105-145% of Vout nominal
- Temperature Coefficient: 0.02%/K max.
- Ingress Protection: IP00
Buy the Traco Power Series TMPW 10 Power Supply: TMPW10115
Order the Traco Power TMPW 10 Series power supply online now to ensure reliable power delivery for industrial or household systems. Designed for energy efficiency, safety compliance, and compact size, this 10-watt module features a wide input voltage range of 90-305 VAC, high efficiency up to 86%, and reinforced insulation for safety. It supports multiple output voltages, operates from -40°C to +70°C, and includes internal EMC filters. Suitable for various demanding environments, it guarantees long-lasting durability and safety for your applications.
Get Traco Power TMPW 10 Series power supply today—built for energy-efficient industrial and household applications with high efficiency and safety compliance.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW10115?
You can click on the BUY or RFQ button to purchase TMPW10115 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW10115?
You can download the TMPW10115 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW10115?
TRACO POWER
