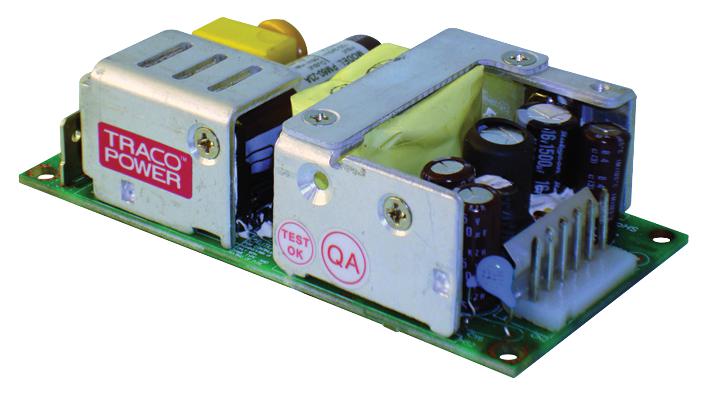

TRACO POWER TOP60254 Power Supply
The TOP 60 series offers compact, high-efficiency AC/DC power supplies with 60W output, suitable for industrial and IT applications. Featuring a 2.0 x 4.0-inch footprint, these open-frame units operate within a wide input range of 90-264 VAC or 370 VDC, ensuring reliable performance with convection cooling. They support single, dual, and triple outputs, with efficiencies up to 88%. Safety and EMC standards are met, including EN 55022, EN 61000-3-2, and UL 60950-1, making them versatile for demanding environments. Capable of operating over -10°C to +70°C, they are protected against overvoltage, short circuits, and electromagnetic interference, offering robust and dependable power solutions.
TRACO POWER TOP60254 Power Supply Specifications:
- Footprint: 2.0 x 4.0 inches (50.8 x 101.6 mm)
- Output Power: 55W to 64W depending on model
- Input Voltage: 90 - 264 VAC, 47-63Hz, 370 VDC max
- Efficiency: Up to 88%
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 0-95% RH non-condensing
- Ripple & Noise: <100 mVp-p for 3.3V/5V models
- Protection: Overvoltage, short circuit (foldback, auto-recovery)
- Isolation Voltage: 4000 VAC (Input / Output)
- Compliance: EN 55022 (B), EN 61000-3-2, UL 60950-1
- Electromagnetic Compatibility: Conducted & radiated emission standards met
- Switching Frequency: 62 kHz typical
- MTBF: >400,000 hours
- Weight: 205 g
- Derating: 2.5% per K above 50°C.
Buy the Buy TRACO POWER TOP 60254 Part Number TOP60254 Online
Purchase the TRACO POWER TOP 60254 power supply online today for a reliable and efficient 60W solution suitable for industrial, automation, and IT applications. Compact and with multiple output options, this power supply features high efficiency up to 88%, wide input voltage range, and compliance with global safety standards. Its robust design ensures operation in diverse environments from -10°C to +70°C. Order now to secure dependable power, quick delivery, and excellent support for your engineering projects and electronic systems.
Order your TRACO POWER SeriesTOP 60254 60W Power Supply today and ensure reliable, efficient power for your industrial and IT projects.
