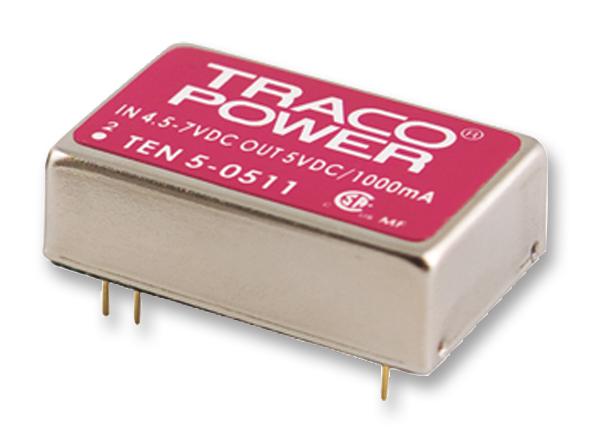

TRACO POWER TEN50511 DC/DC Converter Module
The POWER TEN 5 Series DC/DC converters deliver reliable 6W power with high efficiency up to 86%, extended temperature range -40°C to 85°C, and 1500 VDC isolation. Designed with full SMD technology, these modules meet EN 55022-A and FCC Level A standards, making them ideal for industrial, communication, and mobile battery applications. Features include short circuit protection, excellent regulation, low ripple, and a compact shielded metal case, ensuring robust operation in demanding environments.
TRACO POWER TEN50511 DC/DC Converter Module Specifications:
- Input voltage range: 3.3 VDC to 48 VDC (various models up to 75 VDC input)
- Output voltage: 3.3 V, 5 V, 12 V, 15 V, 18 V, 36 V, 45 V, 75 V (varies by model)
- Maximum output current: 500 mA to 1200 mA depending on model
- Efficiency: up to 86%
- Operating temperature: -40°C to +85°C
- Isolation voltage: 1500 VDC
- Ripple and noise: 50 mVpk-pk to 75 mVpk-pk
- Switching frequency: 300 kHz
- MTBF: >1 million hours
- Protection: Short circuit, reverse voltage (1A max), automatic recovery
- Dimensions: 19.5 mm x 15.5 mm x 11 mm
- Weight: 16.9 g
- Case material: Steel, epoxy potting
- Soldering temperature: Max 260°C for 10 sec
- Compliance: UL 60950-1, IEC/EN 60950-1, Reach, RoHS
Buy the Tracopower Series TEN 5 DC/DC: TEN 50511
Purchase your Tracopower Series TEN 5 DC/DC converter today and benefit from high efficiency, wide input range, and rugged reliability. Ideal for industrial and communication power supplies, these compact modules feature excellent regulation, low ripple, and safe protection features like short circuit and reverse voltage protection. With an extended temperature range up to 85°C and MTBF over 1 million hours, they guarantee long-term stable operation. Order now to ensure dependable power delivery for your critical applications and meet all industry safety standards easily.
Order your Tracopower Series TEN 5 DC/DC module today and ensure your industrial and communication systems operate with reliable, high-efficiency power.
Frequently Asked Questions
Where can I buy TRACO POWER TEN50511?
You can click on the BUY or RFQ button to purchase TEN50511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN50511?
You can download the TEN50511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN50511?
TRACO POWER
