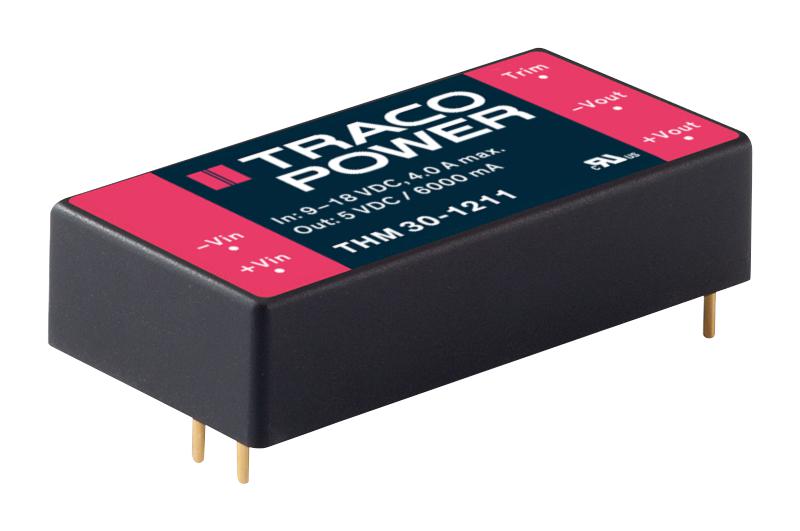

TRACO POWER THM301211 Medical Power Converter
The THM 30 Series is a range of 30 Watt medical DC/DC converters in a compact 2 x 1-inch plastic case, providing wide 2:1 input voltage range, reinforced 5000 VACrms isolation, and low leakage current of less than 2.5 pA. Certified for IEC/EN/ES 60601-1 3rd edition for two means of patient protection, these converters feature high efficiency up to 90%, operating temperature from -40°C to +80°C, and excellent EMI compliance. They are suitable for medical, transportation, and industrial applications demanding reliable power with reinforced isolation and safety certifications.
TRACO POWER THM301211 Medical Power Converter Specifications:
- Input Voltage Range: 5.0 VDC to 42 VDC
- Output Voltage Options: 5 V, 12 V, 15 V, 24 V
- Output Current: up to 3000 mA
- Efficiency: up to 90%
- Isolation Voltage: 5000 VACrms
- Leakage Current: < 2.5 pA
- Operating Temperature Range: -40°C to +80°C
- Case Dimensions: 2 x 1 inches
- Frequency: 225-285 kHz
- Regulation: 0.2% to 1.0%
- Ripple & Noise: 50-100 mVp-p
- Protection: Overcurrent, Overvoltage, Short Circuit
- Certifications: IEC/EN/ES 60601-1, IEC 60601-1-2, EN55032
- Altitude: Up to 5000 m
Buy the Buy Traco Power THM 30 Series Part Number THM301211 Online
Order the Traco Power THM 30 Series medical power converters online today to benefit from high reliability, reinforced 5000 VAC isolation, and efficiency up to 90%. Perfect for medical devices, transportation systems, and industrial applications requiring certified power solutions. These compact 30W units operate from -40°C to +80°C, featuring low leakage current of less than 2.5 pA, robust safety standards, and certifications for IEC/EN/ES 60601-1. Ensure seamless integration into your project by purchasing online with fast delivery and comprehensive support.
Buy Traco Power THM 30 Series THM301211 now and experience reliable medical power conversion with reinforced isolation and high efficiency.
