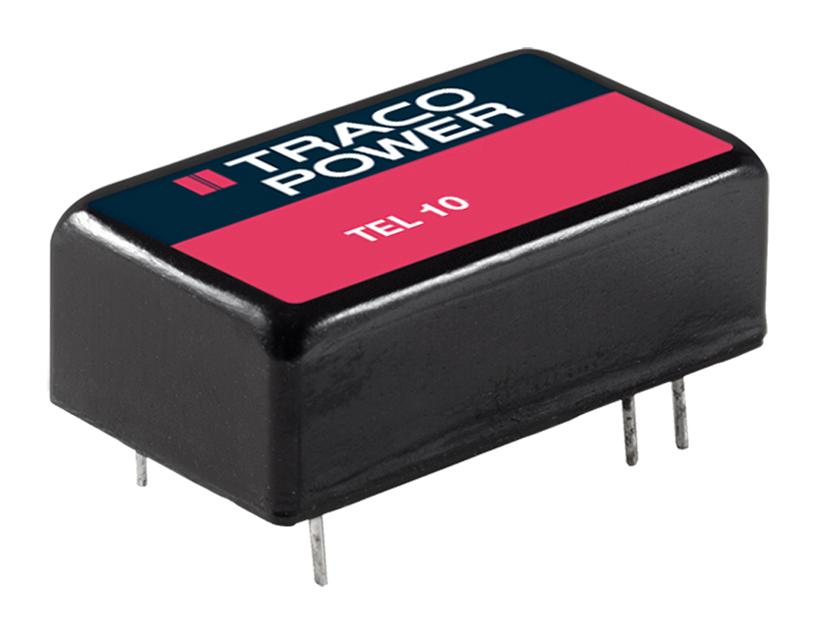

TRACO POWER TEL104811 DC/DC Converter
The TEL 10 Series is a compact 10 Watt DC/DC converter in a DIP-16 metal package, designed for space-critical applications in industrial electronics, instrumentation, and IT. It offers a wide 2:1 input voltage range, high efficiency up to 88%, and operates from -40°C to +88°C. Features include built-in EMI filter for compliance with EN 55032 class A, short circuit protection, and automatic recovery, making it ideal for low power, cost-sensitive projects requiring reliable power conversion and miniaturization.
TRACO POWER TEL104811 DC/DC Converter Specifications:
- Output Power: 10 Watts
- Input Voltage Range: 9-18V, 12V, 24V, 48V, 72V configurations
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +88°C
- Isolation Voltage: 1,800 VDC (input to output), 707 VAC (input to case)
- Input Current at Full Load: 970 mA (12V), 480 mA (24V), 240 mA (48V)
- Ripple and Noise: 60-96 mVp-p depending on model
- Surge Voltage: 25V (12V models), 60V (24V models), 100V (48V models)
- Dimensions: 16 mm x 15.24 mm x 10 mm (L x W x H)
- Housing Material: Aluminum alloy, anodized
- Soldering Profile: Wave soldering at 260°C for 10 seconds
- Isolation Resistance: >1 GΩ
- Certifications: UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55032 class A
- Protection: Short circuit, automatic recovery
Buy the Traco Power Series TEL 10 Power Supply: TEL104811
Secure your Traco Power Series TEL 10 10 Watt DC/DC converter online today and benefit from a reliable, high-efficiency power solution ideal for space-constrained industrial electronics and instrumentation. With a wide input voltage range, built-in EMI filter, and protection features, this converter guarantees optimal performance across diverse applications. Its compact DIP-16 metal casing ensures easy integration into your designs, offering robust safety standards and excellent thermal performance. Purchase now for dependable power with quick delivery and technical support.
Order your Traco Power Series TEL 10 power converter today and ensure reliable, compact power for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL104811?
You can click on the BUY or RFQ button to purchase TEL104811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL104811?
You can download the TEL104811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL104811?
TRACO POWER
