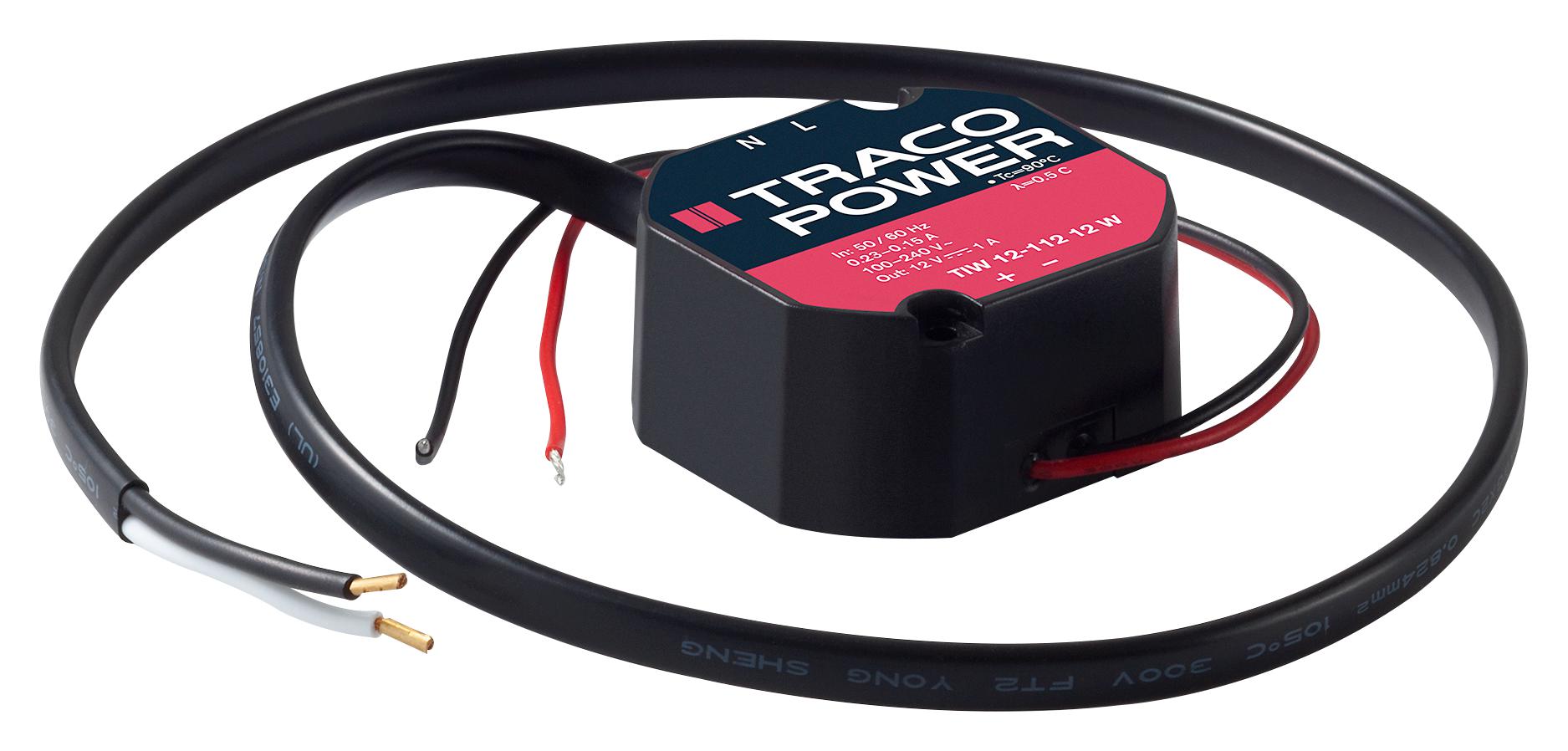

TRACO POWER TIW24112 Power Supply Module
The TIW Series is a compact, fully encapsulated power supply range designed for home and office automation, security, and lighting applications. It features corrosion-resistant IP 67 casing, high efficiency switching technology, and safety approvals compliant with IEC/EN 60950-1 and UL standards. These 4 to 24-watt modules operate from a universal input range of 93 to 264 VAC, with regulated DC outputs from 3.3V to 24V. Suitable for flush box installation, they provide short circuit and overload protection, operate below -25°C, and are certified for fire safety and EMC compliance for reliable, safe operation in residential and commercial environments.
TRACO POWER TIW24112 Power Supply Module Specifications:
- Input Voltage Range: 93-264 VAC universal input
- Output Power: 4-24 W
- Output Voltage: 3.3 VDC to 24 VDC
- Output Current: up to 12A
- Efficiency: 75% to 85%
- Operating Temperature: -25°C to +50°C
- Protection: Short circuit, overload, over temperature
- Casing Material: UL 94V-0 plastic, IP 67 rated
- Harmonic Limits: EN 61000-3-2, Class A
- EMC Immunity: EN 61000-4-2 to -4-11, EN 61000-6-2
- Dimensions: Small size for flush box mounting, weight approximately 80-100 g
- Certifications: IEC 60950-1, UL 60950-1, UL 1310, EN 60335-1
- Safety: Fire retardant casing, VDE 710-14
- Environmental: RoHS compliant, Reach compliant
- Mechanical: Connection wires 18-20 AWG, external fuse recommended
Buy the Traco Power TIW24112 – Reliable Power Supply for Industrial Applications
Purchase your Traco Power TIW24112 power supply online today and benefit from high efficiency, IP 67 waterproof casing, and certified safety standards. This compact module provides regulated DC output from 3.3V to 24V, suitable for home automation, security systems, and industrial control applications. Designed for easy flush box installation, it features short circuit, overload, and temperature protections to ensure reliable operation in demanding environments. Secure your project’s power needs efficiently and safely by buying online now.
Order your Traco Power TIW24112 series power supply today and ensure your automation and security projects operate with dependable, safe power.
