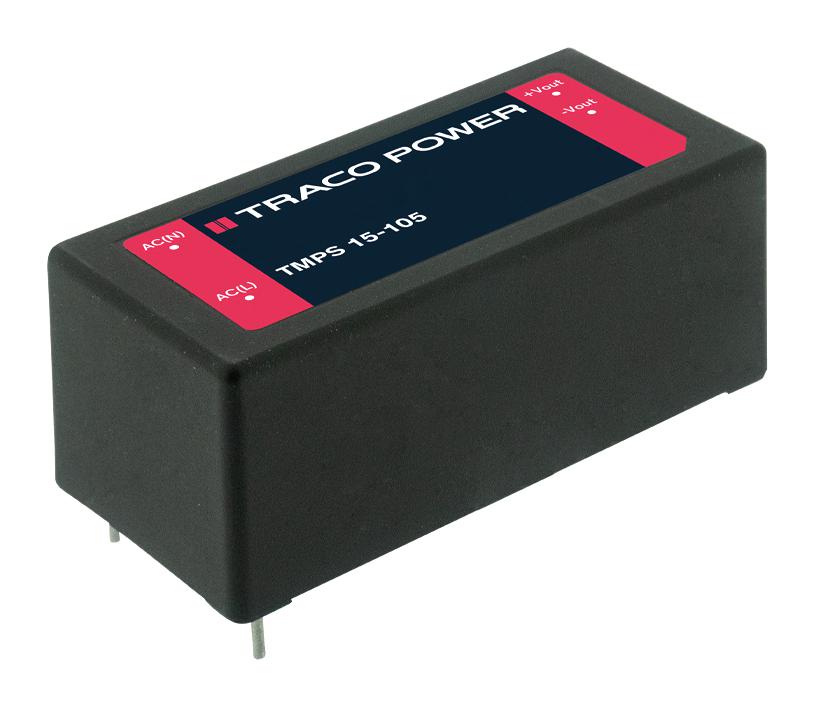

TRACO POWER TMPS15105 Power Supply Module
The TMPS 15 series is a range of fully encapsulated AC/DC power supplies designed for household, building automation, and industrial applications. These power supplies feature a compact package measuring approximately 1.07” x 2.06” x 0.93”, and are compliant with the ErP directive, consuming only 100mW at no load for energy efficiency. They are prepared for protection class II applications, offering reinforced insulation, pollution degree 2, and overvoltage category II, with integrated EN 55032 Class B EMI filters for electromagnetic compatibility. The devices support operational temperatures from -25°C to +70°C, provide 130% peak power for up to 30 seconds, and include protections such as automatic short circuit recovery and overload foldback. Certified according to EN 60335, UL 62368-1, and other relevant standards, they have a plastic housing rated UL 94 V-0 and are guaranteed with a 3-year warranty.
TRACO POWER TMPS15105 Power Supply Module Specifications:
- Input Voltage: 85-264 VAC, 100-240 VAC, 120-370 VDC
- Input Frequency: 47-440 Hz
- Efficiency: up to 84%
- Output Power: 15 W
- Output Voltage & Current Options: 5 V/3A, 12 V/1.25A, 15 V/1A, 24 V/0.625A, 48 V/0.313A
- Peak Power: 130% for 30 seconds
- No Load Power: <100 mW
- Operating Temperature: -25°C to +70°C
- Dimensions: 1.07” x 2.06” x 0.93”
- Protection Class: II, reinforced insulation
- Isolation Voltage: 3000 VAC input to output
- EMI Filter: EN 55032 Class B
- Certifications: EN 60335, UL 62368-1
- Housing Material: UL 94 V-0 rated plastic
- Approvals: CE, UL
- Safety Category: Class II
Buy the Traco Power TMPS 15 – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TMPS 15 power supply online now and ensure reliable energy conversion for your household, automation, or industrial systems. Its compact size, high efficiency, and reinforced insulation make it perfect for demanding applications. With built-in protections, energy-saving features, and certifications for safety and EMC compliance, this power supply guarantees safe and efficient operation. Easy to install and backed by a 3-year warranty, order now to leverage dependable power solutions tailored for industrial and automation needs.
Get Traco Power TMPS 15 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMPS15105?
You can click on the BUY or RFQ button to purchase TMPS15105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPS15105?
You can download the TMPS15105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPS15105?
TRACO POWER
