TRACO POWER THN107215WIR Rugged Industrial Power Converter

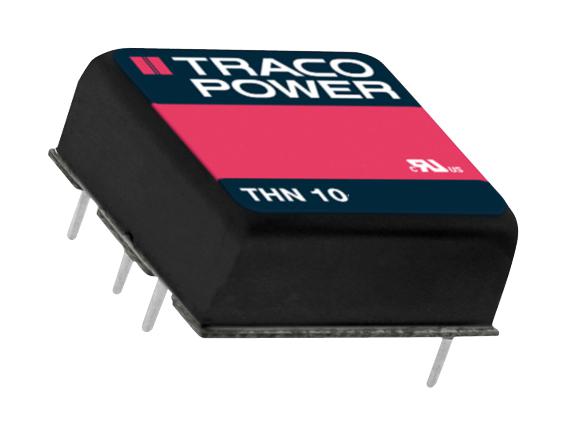

The TRACO POWER THN series is a ruggedized 10W DC/DC converter designed for high reliability in harsh environments with a compact 1" x 1" metal package. It features a wide 4:1 input voltage range of 9V-36V, 18V-75V, and 36V-160V, supporting railway standards and fire safety with EN 50155, EN 61373, and EN 45545-2 certifications. The converter offers efficiencies up to 90%, internal EMI filtering, overload, overvoltage, short circuit protections, and remote On/Off with voltage trim, operating from -40°C to +80°C without derating. Its robust design ensures stable power delivery for railway and industrial applications.
TRACO POWER THN107215WIR Rugged Industrial Power Converter Specifications:
- Input Voltage Range: 9-36V, 18-75V, 36-160VDC
- Output Power: 10 Watts
- Efficiency: up to 90%
- Input Current: 10 mA at no load for 24V models, 8 mA for 48V, 6 mA for 140V
- Surge Voltage: 60 VDC (24V models), 100 VDC (48V), 185 VDC (140V)
- Operating Temperature: -40°C to +80°C without derating
- Isolation Voltage: 3000 VDC input to output
- Output Voltage Adjustment: -10% to +20% with external resistor
- Ripple & Noise: 75 mVp-p (typ.)
- Short Circuit Protection: Yes, automatic recovery
- Remote On/Off: Yes, voltage controlled (3.0 to 15 VDC)
- Dimensions: 25.4 mm x 25.4 mm x 10.16 mm
- Protection: Overvoltage, overload, and short circuit protections
- Standards: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Material: Copper housing, UL94-V0 rated non-conductive PCB, epoxy potting
- Vibration: MIL-STD-810F, EN 61373 compliance
- Insulation Resistance: 1000 MΩ at 500 VDC
- Isolation Capacitance: 1000 pF
Buy the TRACO POWER THN107215WIR – Reliable Railway and Industrial Power Converter for Harsh Environments
Purchase the TRACO POWER THN 10WIR series online today and ensure reliable power conversion for demanding railway and industrial environments. With a compact 1" x 1" metal package, high efficiency up to 90%, and certifications such as EN 50155 and EN 61373, these converters deliver exceptional performance under extreme temperatures from -40°C to +80°C. Features include overload, overvoltage, short circuit protections, remote On/Off, and voltage trim. Designed for high reliability, ease of integration, and long-term durability, they are ideal for tough transportation and industrial applications.
Get TRACO POWER THN107215WIR today—built for precision and long-lasting durability in rugged industrial and railway applications.
Frequently Asked Questions
Where can I buy TRACO POWER THN107215WIR?
You can click on the BUY or RFQ button to purchase THN107215WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN107215WIR?
You can download the THN107215WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN107215WIR?
TRACO POWER
