TRACO POWER TPI300124LM Industrial Power Supply

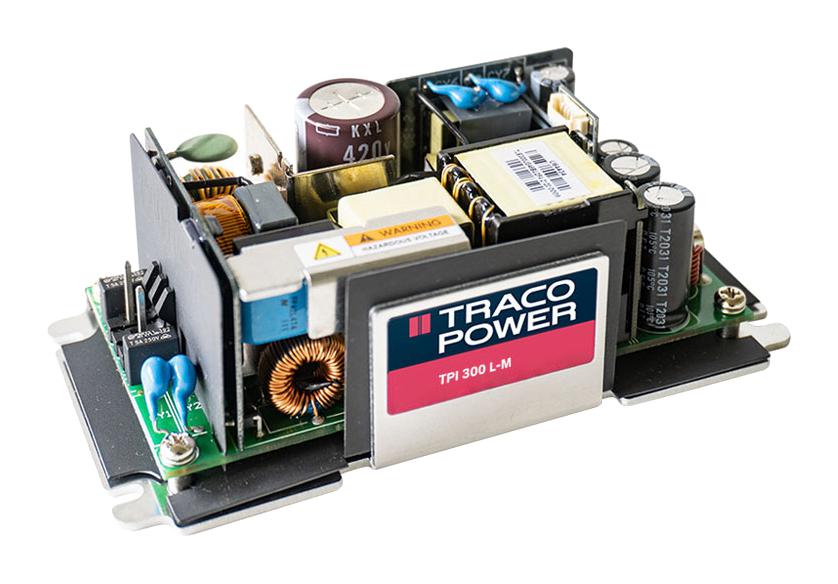

The TPI 300L-M series consists of encapsulated AC/DC power supplies housed in an open frame package, offering high reliability and efficiency. They feature reinforced double I/O isolation rated at 3000 VAC, complying with the latest industrial safety standards. The units are designed for high power density in a compact form factor of approximately 4.6 inches by 2.44 inches. They operate across a wide temperature range from -40°C to +85°C, with derating above 50°C. Under natural convection, they deliver 180W, with up to 300W available with forced air cooling, and can peak at 360W for 5 seconds. These power supplies are suitable for industrial and medical applications, with EMC characteristics tailored for these environments. They are built using high-quality components with excellent thermal management, ensuring high reliability. Additional features include active power factor correction over 0.9, operation up to 5000 meters altitude, and protection class II design. The product is certified under IEC/EN/UL 62368-1 and backed by a 3-year warranty.
TRACO POWER TPI300124LM Industrial Power Supply Specifications:
- Power Density: 300 Watt in a 4.6" x 2.44" open frame package
- Isolation Voltage: 3000 VAC (double I/O isolation)
- Operating Temperature: -40°C to +85°C with derating above 50°C
- Peak Power: up to 360 Watt for 5 seconds
- Efficiency: up to 93%
- Input Voltage Range: 85 - 264 VAC / 100 - 240 VAC / 120 - 370 VDC (designed)
- Input Frequency: 47-63 Hz
- Active Power Factor Correction: >0.9
- Altitude: Up to 5000 meters
- Protection Class: II
- Certifications: IEC/EN/UL 62368-1
- Dimensions: 4.6 inches x 2.44 inches x height (not specified but approximately 1.25 inches based on typical open frame sizes)
- Operating Temperature Range: -40°C to +85°C
- Warranty: 3 years
Buy the Traco Power TPI300124LM – Reliable Industrial Power Supply for Medical and Automation Applications
Order the Traco Power TPI300124LM now through our online store to ensure your industrial or medical device operates with high efficiency, robust safety standards, and long-term reliability. This compact, high-density power supply features reinforced IEEE I/O isolation, wide temperature tolerances, and excellent EMC compliance. Its peak power capacity of 360W for 5 seconds makes it ideal for demanding applications. Backed by a 3-year warranty, it's engineered for industries requiring safe, durable, and efficient power conversion, available for prompt delivery online.
Buy Traco Power TPI300124LM now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TPI300124LM?
You can click on the BUY or RFQ button to purchase TPI300124LM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPI300124LM?
You can download the TPI300124LM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPI300124LM?
TRACO POWER
