TRACO POWER THN152423WI High efficiency power converter

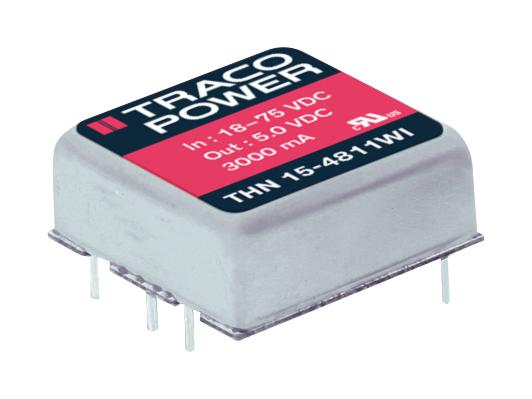

The THN 15WI series offers compact, high-performance 15W DC/DC converters with ultra-wide 4:1 input voltage range (9-36 VDC or 18-75 VDC), high efficiency up to 87%, and a small 1.0” x 1.0” x 0.4” shielded metal package. Designed for space-constrained applications, these modules feature remote On/Off, output voltage trimming, and industry-standard pinout. Operating from -40°C to +85°C, they are ideal for battery-powered devices, portable instrumentation, and distributed power architectures in industrial and communication systems. Certified UL60950, EN 60950-1, and RoHS compliant.
TRACO POWER THN152423WI High efficiency power converter Specifications:
- Input voltage range: 9-36 VDC or 18-75 VDC (ultra-wide 4:1 range)
- Output voltages: 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V with adjustable options
- Maximum output current: up to 4 A depending on model
- Efficiency: up to 87%
- Operating temperature: -40°C to +85°C with derating
- Isolation voltage: 1500 VDC (input to output)
- Dimensions: 1.0” x 1.0” x 0.4” (25.4 x 25.4 x 10.16 mm)
- Average power: 15 Watts
- Protection: Short circuit, overvoltage, automatic recovery
- Remote On/Off range: 3.0 to 15 VDC or open circuit
- Soldering temperature: 265°C / 10 s
- Certifications: UL, cUL, EN 60950-1, RoHS
Buy the Traco Power Series THN 15WI: High Efficiency 15 Watt DC/DC Converter
Discover the compact and reliable 15W power conversion solution from Traco Power with the THN 15WI series. Featuring ultra-wide input voltage range, high efficiency up to 87%, and robust isolation, this module is perfect for industrial, communication, and portable applications with limited space. Easy to operate with remote On/Off, output voltage trimming, and industry-standard pinout, ensuring flexible integration and excellent performance across temperature ranges from -40°C to +85°C. Certified UL and RoHS, it offers exceptional durability and safety.
Buy Traco Power THN 15WI 15 Watt DC/DC converter now and experience unmatched reliability and space-saving performance in your electronic projects.
Frequently Asked Questions
Where can I buy TRACO POWER THN152423WI?
You can click on the BUY or RFQ button to purchase THN152423WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN152423WI?
You can download the THN152423WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN152423WI?
TRACO POWER
