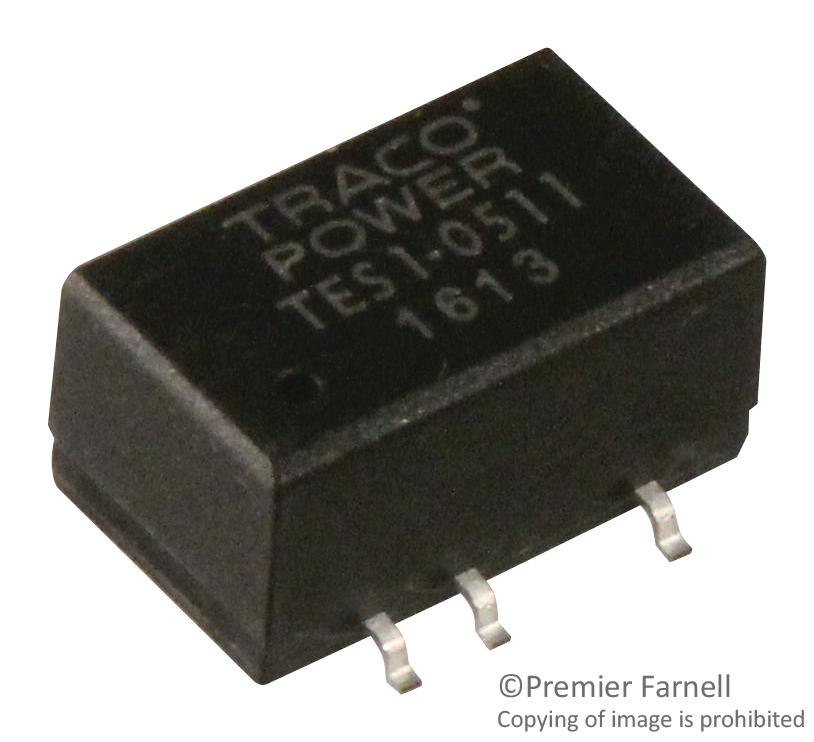

TRACO POWER TES12411 DC/DC Converter
The TES 1 Series from TRACOPOWER offers compact 1W DC/DC converters in a small SMD package, ideal for industrial power applications. These unregulated devices feature a 1500 VDC input-output isolation, high efficiency up to 80%, and operate across -40°C to +90°C. Available in single and dual output models with input voltages of 5, 12, and 24 VDC, they are suitable for ground loop elimination, noise reduction, voltage isolation, and distributed power systems. Qualified for lead-free reflow soldering, they ensure reliable performance in automated manufacturing processes.
TRACO POWER TES12411 DC/DC Converter Specifications:
- Input voltage: 5 VDC, 12 VDC, 24 VDC
- Output voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V, and 24 V
- Output current: 65 mA to 435 mA depending on model
- Isolation voltage: 1500 VDC for 60 seconds
- Operating temperature: -40°C to +90°C
- Efficiency: up to 80%
- Flammability: UL 94V-0
- Case material: plastic
- Weight: single output 1.7 g, dual output 2.0 g
- Peak package temperature: 245°C (J-STD-020D.1)
- Humidity: up to 95% RH non-condensing
- MTBF: >2,000,000 hours
- Reverse voltage protection: 0.3 A max
- Ripple and noise: 120 mVpp max
- Dimensions: detailed in datasheet, approx. 3 mm x 5 mm footprint
- Qualified for lead-free reflow solder: yes
- Supported: Tape and reel packaging for automation
Buy the TRACOPOWER TES 1 – Reliable DC/DC Converter for Industrial Applications
Enhance your industrial power systems with the TRACOPOWER TES 12411 DC/DC converter. This compact, highly efficient device offers 1500 VDC isolation, suitable for ground loop elimination, noise reduction, and voltage conversion in distributed systems. Featuring a rugged plastic case, qualified for lead-free reflow soldering, it operates from -40°C to +90°C and supports automated tape and reel packaging for easy online procurement. Invest in dependable power conversion today to ensure optimal performance and longevity of your industrial equipment.
Order your TRACOPOWER TES 12411 high-performance DC/DC converter today and ensure your industrial power systems operate reliably with efficient voltage isolation.
Frequently Asked Questions
Where can I buy TRACO POWER TES12411?
You can click on the BUY or RFQ button to purchase TES12411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TES12411?
You can download the TES12411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TES12411?
TRACO POWER
