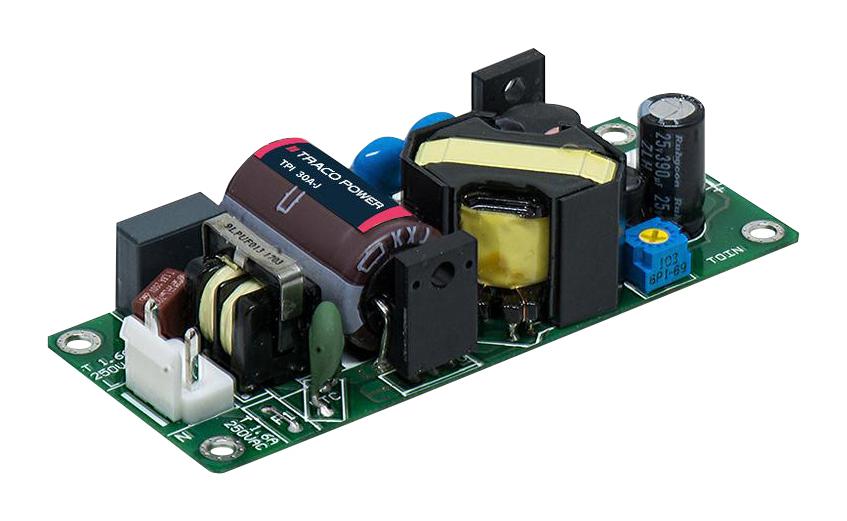

TRACO POWER TPI30153AJP Industrial Power Supply
The TPI 30A-J Series is a compact, 30 Watt open-frame AC/DC power supply designed for industrial applications. It features reinforced isolation of 3000 VAC, operates over a wide temperature range from -40°C to +85°C, and offers up to 90% efficiency. With a peak power function delivering up to 130% for 10 seconds, it ensures high reliability in demanding environments. Compliant with UL 62368-1 and IEC 62368-1 standards, it includes high-quality components, EMI filtering, and low no-load power consumption under 0.3W to meet the ErP directive, making it suitable for industrial automation and testing systems.
TRACO POWER TPI30153AJP Industrial Power Supply Specifications:
- Output Power: 20 W to 36 VDC at 1,260 mA, 24 VDC at 1,667 mA, 30 W peak delivery for up to 10 seconds
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC, 50-63 Hz frequency range
- Operating Temperature: -40°C to +85°C with derating above 60°C, natural convection cooling
- Efficiency: Up to 90%, low no-load power < 0.3W for energy saving
- Isolation Voltage: 3000 VAC reinforced isolation, Overvoltage protection: 125-140% of rated Vout
- Dimensions: 3.34 x 1.36 inches, weight approximately 60.59 grams, screw lock torque 0.49 Nm
- Standards: UL 62368-1, IEC 62368-1, EN 65032 class B EMI filter, environmental compliance RoHS, Reach
- Protection: Continuous short circuit, Overvoltage, and Overload protection, class II insulation, pollution degree 2
Buy the Traco Power Series TPI 30A-J Power Supply: 30 Watt Open Frame Power Supply
Purchase the Traco Power TPI 30A-J Series 30 Watt open frame power supply online today and ensure your industrial equipment operates reliably. With reinforced isolation of 3000 VAC, high efficiency up to 90%, and a wide operating temperature range from -40°C to +85°C, this power supply is ideal for demanding automation, test, and measurement applications. Its peak power functionality allows delivery of up to 130% for 10 seconds, making it versatile for space-critical and high-performance industrial systems. Enjoy fast delivery, secure payment, and expert support when buying online.
Buy Traco Power TPI 30A-J series 30 Watt open frame power supply now and experience unmatched reliability and performance in industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TPI30153AJP?
You can click on the BUY or RFQ button to purchase TPI30153AJP from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPI30153AJP?
You can download the TPI30153AJP datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPI30153AJP?
TRACO POWER
