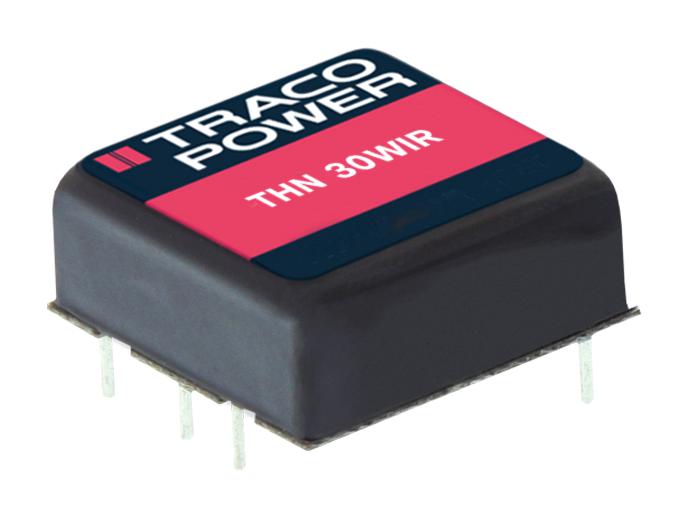

TRACO POWER THN302411WIR high-reliability industrial DC/DC converter
The THN 30WIR series is a high-reliability DC/DC converter designed for use in harsh environments. It delivers 30 Watts of power and is part of an extended family of EN 50155 railway-certified wide input voltage range 1x1 DC/DC converters. The unit features a fully metal-shielded enclosure on all six sides, providing excellent immunity to electromagnetic interference. Its complete encapsulation offers increased resistance to thermal shocks, mechanical shocks, and vibrations. The THN 30WIR is certified according to EN 61373 for mechanical shock and vibration, and EN 45545-2 for fire safety. It also carries IEC/EN/UL 62368-1 safety approvals. Key features include a wide 4:1 input voltage range, operation at ambient temperatures from -40°C to +65°C without derating, up to 3000 VDC input/output isolation, remote on/off and trim functions, and various protections such as undervoltage lockout, short circuit, overvoltage, and overtemperature protection. A 3-year product warranty is included.
TRACO POWER THN302411WIR high-reliability industrial DC/DC converter Specifications:
- Power: 30 Watts
- Input Voltage Range: 9-36 VDC / 18-75 VDC / 36-160 VDC / 160 VDC
- Output Power: up to 30W
- Efficiency: Up to 91%
- Isolation Input to Output: Up to 3000 VDC
- Operation Temperature Range: -40°C to +65°C without derating
- Shock & Vibration: EN 61373 certified for mechanical shock and vibration
- Fire Safety: EN 45545-2 certified
- Safety Approvals: IEC/EN/UL 62368-1
- Enclosure: Fully metal-shielded on all six sides
- Protection Features: UVLO, SCP, OVP, OTP
- Input Surge Voltage: 50 VDC (24 V), 100 VDC (48 V), 185 VDC (110 V)
- Start-up Time: approx. 30 ms
- Hold-up Time: at least 200 μs
- Switching Frequency: 210 - 370 kHz depending on model
- Insulation Resistance: ≥17 MΩ
- Housing Material: Copper base / non-conductive plastic frame
- Cooling: Natural convection
- Humidity: Up to 95%
Buy the Traco Power THN 30WIR – Reliable DC Converter for Industrial Applications
Purchase the Traco Power THN 30WIR series online to ensure your industrial applications benefit from high efficiency, robust protection, and certified safety standards. Designed for harsh environments, this 30-watt DC/DC converter offers wide input voltage ranges, full encapsulation, and excellent electromagnetic interference immunity. It features remote on/off, adjustable output, and multiple protections including undervoltage lockout, short circuit, and overvoltage protection. With a durable metal enclosure, high efficiency, and a 3-year warranty, order online today for reliable power conversion in demanding industrial settings.
Get Traco Power THN 30WIR today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN302411WIR?
You can click on the BUY or RFQ button to purchase THN302411WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN302411WIR?
You can download the THN302411WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN302411WIR?
TRACO POWER
