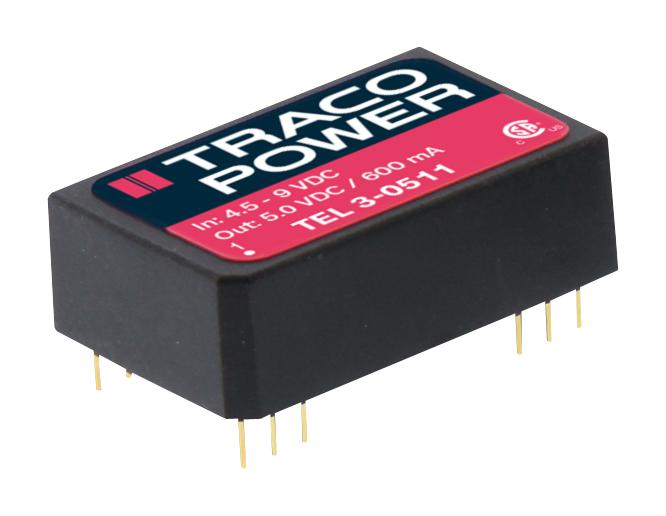

TRACO POWER TEL30511 DC/DC Converter
The TEL 3 series offers reliable isolated 3 Watt DC/DC converters in a compact DIL-24 package, suitable for industrial and consumer electronics. Featuring wide 2:1 and 3:1 input voltage ranges, high efficiency up to 81%, and a temperature range of -40°C to +85°C, these converters provide low output noise, automatic short-circuit protection, and 1500 VDC isolation. They ensure stable output regulation with low ripple, making them ideal for cost-sensitive applications requiring compact size, durability, and efficient power conversion with industry-standard pinout options.
TRACO POWER TEL30511 DC/DC Converter Specifications:
- Input voltage range: 5 VDC to 48 VDC with models available for 4.5-9.0 V, 9-18 V, 10-30 V, 18-36 V, 36-75 V, and 48 VDC
- Output power: 3 Watt
- Output voltage options: 5 VDC, 12 VDC, 15 VDC, 20 VDC, 24 VDC, 36 VDC, 48 VDC
- Maximum output current: 600 mA at 5 V, 250 mA at 12 V, 200 mA at 15 V, 125 mA at 12 V in certain models
- Efficiency: up to 81%
- Operating temperature: -40°C to +85°C
- Isolation voltage: 1500 VDC
- Ripple and noise: <60 mVpk-pk at 20 MHz bandwidth
- Temperature coefficient: +0.02 %/°K
- Short-circuit protection: Automatic recovery, indefinite
- Mechanical: Non-conductive black plastic case, weighs approximately 12 g, soldering max temp 265°C for 10 sec.
- Standards: UL 60950-1, IEC/EN 60950-1, RoHS, Reach, CSA
- Switching frequency: 300 kHz typ.
Buy the Buy TRACO-POWER TEL30511 DC/DC Converter Part Number 30511 Online
Purchase TRACOPOWER TEL 3 Series high-efficiency 3 Watt DC/DC converters online for a dependable power supply solution in industrial and electronic equipment. With wide input ranges up to 48 VDC, excellent temperature stability, and industry-standard pinout, these converters deliver consistent performance, low noise, and protection features including short-circuit resilience. Ideal for space-constrained applications, they ensure reliable operation with efficiency up to 81%, making them suitable for demanding environments requiring stable and efficient power conversion with minimal noise and high reliability.
Get TRACOPOWER TEL 3 Series today—built for precise power conversion and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TEL30511?
You can click on the BUY or RFQ button to purchase TEL30511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL30511?
You can download the TEL30511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL30511?
TRACO POWER
