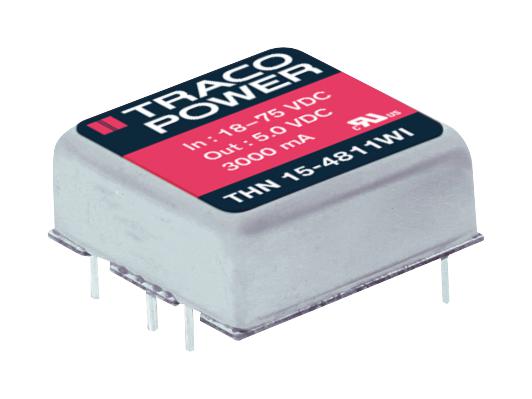

TRACO POWER THN154811WIA1 DC/DC Converter
The THN 15WI Series offers high-performance, 15W encapsulated DC/DC converters with ultra-compact dimensions of 1.0” x 1.0” x 0.4”. They feature ultra-wide input ranges of 9-36 VDC or 18-75 VDC, high efficiency up to 87%, and operate over a temperature range of -40°C to +85°C. These converters include features like output voltage trimming, remote On/Off control, and industry-standard pinouts, suitable for space-constrained applications in industrial electronics, communication, and battery-powered devices, providing reliable power with a 3-year warranty.
TRACO POWER THN154811WIA1 DC/DC Converter Specifications:
- Input voltage range: 9-36 VDC or 18-75 VDC
- Output voltage options: 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V
- Maximum output current: 4,000 mA for 3.3V/5V/12V models, 625 mA for 24V models
- Efficiency: up to 90%
- Operating temperature: -40°C to +85°C (with derating at high temps)
- Isolation voltage: 1500 VDC, Input/Output: 1600 VDC
- Dimensions: 1.0” x 1.0” x 0.4”, casing material: nickel-coated copper, potting: UL94V-0 epoxy
- Switching frequency: approximately 400 kHz
- Power derating: 2.2%/K above 60°C
- Startup time: around 30 ms
- Ripple & noise: 75-100 mVpk-pk depending on model
Buy the Buy TRACOPOWER DC/DC Converter Part Number THN 15WI Series Online
Purchase the TRACOPOWER high-efficiency 15W DC/DC converter online today to benefit from its compact size, broad input range, and reliable performance. Perfect for industrial electronics, communication devices, and battery-powered applications, it features remote On/Off, output trimming, and high efficiency up to 90%. With a small footprint of just 1.0” x 1.0” x 0.4”, it saves valuable space on your PCB while providing stable, isolated power. Order now and improve your project's power solutions effortlessly.
Order your TRACOPOWER THN 15WI Series 15 Watt DC/DC Converter today and ensure reliable power in space-constrained industrial and communication systems.
