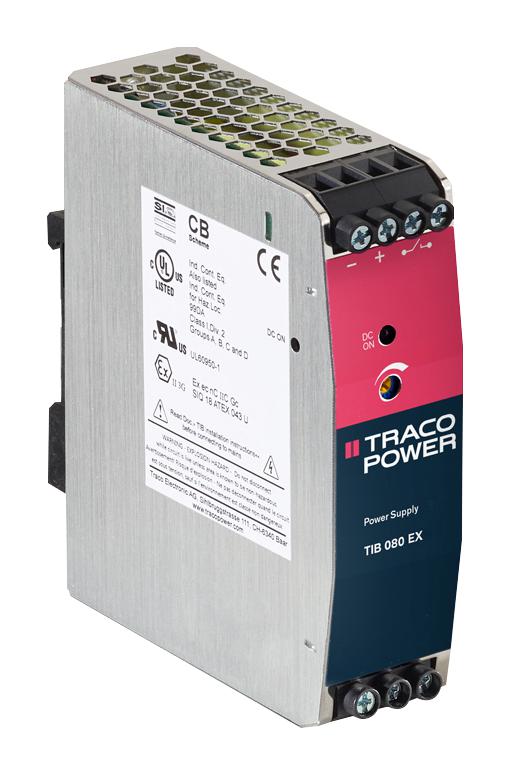

TRACO POWER TIB080112EX Industrial Power Supply
The TIB 080-EX series is a rugged 80 Watt industrial power supply designed for hazardous locations, certified to UL Hazloc Class I Div 2 and ATEX standards. This convection-cooled power supply features up to 90% efficiency, adjustable output voltage, and a wide operating temperature range of -40°C to +70°C. It provides 150% peak power for 4 seconds, ideal for motors and actuators, and includes protections against short circuits and overloads. Its robust metal case allows optional side-mounting, making it suitable for industrial automation and control systems requiring reliable power supply in challenging environments.
TRACO POWER TIB080112EX Industrial Power Supply Specifications:
- Power: 80 W
- Output Voltages: 12 VDC (11.8-150 VDC), 24 VDC (23.5-28.0 VDC), 48 VDC (47.0-56.0 VDC)
- Output Current: 700 mA (12 V), 3400 mA (24 V), 1700 mA (48 V)
- Peak Current: 150% for 4 seconds
- Efficiency: up to 90%
- Operating Temperature: -40°C to +70°C
- Certifications: UL Hazloc Class I Div 2, ATEX EN 60079-0, EN 60079-7, EN 60079-15
- Protection: Short circuit, overload
- MTBF: 1 million hours per IEC 61709
- Design: Rugged metal case with optional side-mounting, convection cooled
- Power Factor: up to 99%
- EMC Compliance: IEC/EN 61000-6-2, IEC/EN 61000-6-3
Buy the Buy Traco Power TIB 080-EX Part Number TIB080112EX Online
Purchase the Traco Power TIB 080-EX industrial power supply online today. This 80 Watt unit offers high efficiency up to 90%, adjustable output voltages, and robust construction for hazardous locations. Certified to UL Hazloc Class I Div 2 and ATEX standards, it ensures reliable operation in demanding environments. Designed with short-circuit and overload protections, it provides peak power for motors and actuators with a 150% surge capability for 4 seconds. Its rugged metal case and wide temperature range make it ideal for industrial automation, control panels, and safety-critical systems requiring long-lasting and dependable power sources.
Get Traco Power TIB 080-EX today—built for industrial automation and hazardous environment applications with high efficiency and rugged durability.
Frequently Asked Questions
Where can I buy TRACO POWER TIB080112EX?
You can click on the BUY or RFQ button to purchase TIB080112EX from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIB080112EX?
You can download the TIB080112EX datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIB080112EX?
TRACO POWER
