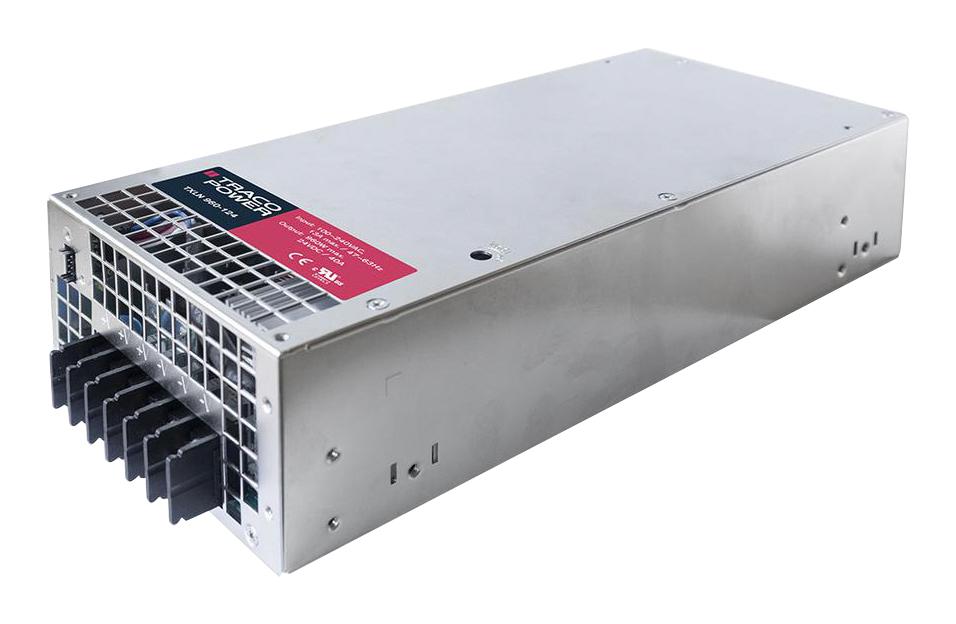

TRACO POWER TXLN960124 Industrial Power Supply
The TXLN 960 series is a compact, high-efficiency power supply family designed for cost-sensitive applications. Encased in a low-profile metal housing with screw terminals, these units support universal input from 90 to 264 VAC and offer features like active PFC above 0.95, and efficiency up to 88%. They provide robust protection against short circuits, overvoltage, and overload, with compliance to IEC, EN, and UL safety standards including 62368-1. Suitable for industrial environments, they operate from -20°C to +70°C, feature a high switching frequency around 60 kHz, and come with a 3-year warranty for reliable performance in various equipment setups.
TRACO POWER TXLN960124 Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC, 127-375 VDC (designed but not certified)
- Input Frequency: 50-63 Hz
- Efficiency: up to 88%
- Active Power Factor Correction: >0.95
- Output Voltage: 24 VDC
- Output Power: 960 Watts
- Output Current: 40,000 mA
- Voltage Regulation: ±1%
- Ripple and Noise: 150 mVp-p (max.)
- Start-up Time: 2,000 ms max.
- Hold-up Time: 16 ms at 230 VAC
- Protection: Short circuit, overvoltage, overload, automatic recovery
- Enclosure Material: Aluminum
- Operating Temperature Range: -20°C to +70°C
- Cooling: Forced air with internal fan
- Insulation System: Reinforced insulation, 3000 VAC output-to-input
- Weight: 2.5 kg
- Safety and Standards: IEC 62368-1, UL 62368-1, EN 61000-6-3, EN 61000-3-2
- EMC: Meets conducted and radiated emissions standards
- Altitude Operation: Up to 4000 meters (derating above 2000 m)
- Switching Frequency: ~60 kHz
- Protection Class: Class I, Pollution Degree 2
- Environmental Compliance: REACH, RoHS
- Connection: Screw terminal, PE connection
- Status Indicator: Green LED for Power OK
Buy the Traco Power Series TXLN 960 Power Supply: 24V 40A 960W
Purchase the Traco Power Series TXLN 960 power supply online today and ensure your equipment operates with reliable, high-quality electrical power. This 960-watt supply features a compact, robust design with a low-profile metal enclosure, supporting universal input voltage from 90 to 264 VAC for maximum flexibility. It offers high efficiency up to 88%, active PFC over 0.95, and comprehensive protections including short circuit, overvoltage, and overload. Certified to IEC, UL, and EN safety standards, it guarantees safe operation in industrial environments. Its automatic recovery from faults and a three-year warranty make it a dependable choice for demanding applications.
Order your Traco Power Series TXLN 960 power supply today and equip your industrial equipment with reliable, high-efficiency power solutions ready for demanding environments.
