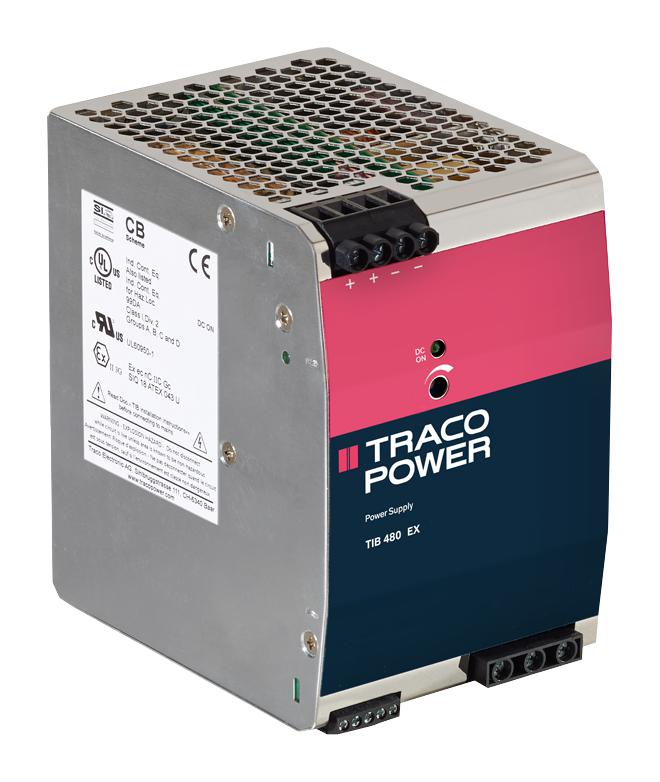

TRACO POWER TIB480148EX Industrial Power Supply
The TIB 480-EX series offers 480 Watt industrial power supplies designed for hazardous locations. Certified to UL Hazloc Class I Div 2 and ATEX standards, these convection-cooled units feature high efficiency up to 95%, adjustable output voltage, and a rugged metal case with optional side-mounting. They support full load operation from -40°C to +70°C, deliver 150% peak current for 4 seconds, and include short circuit, overload, and back power immunity protections. Suitable for controlling motors, solenoids, and actuators, they ensure reliable power in demanding environments with EMI suppression and high power factor.
TRACO POWER TIB480148EX Industrial Power Supply Specifications:
- Power Output: 480 Watt
- Output Voltage: 24 VDC (23.5 - 28.0 VDC), 48 VDC (47.0 - 56.0 VDC)
- Output Current: 20A max (24 V version), 10A max (48 V version)
- Peak Current: 150% for 4 seconds
- Efficiency: Up to 95%
- Operating Temperature: -40°C to +70°C
- Protection: Short circuit, overload, back power immunity
- Certification: UL Hazloc Class I Div 2, ATEX (EN 60079-0, EN 60079-7, EN 60079-15)
- Compliance: IEC/EN/UL 60950-1, UL 508, IEC 61000-6-2, IEC 61000-6-3
- Construction: Rugged metal case, optional side-mounting
- Certifications: UL508, UL 60950-1, IEC 60950-1, CB Report
Buy the Traco Power TIB480148EX – Reliable Industrial Power Supply for Hazardous Locations
Get the Traco Power TIB480148EX industrial power supply online today and enjoy reliable 480W performance certified for hazardous locations. With UL Hazloc and ATEX approvals, it operates efficiently at up to 95% and features adjustable voltage, rugged metal casing, and protections against short circuits and overloads. Its full load temperature range from -40°C to +70°C supports industrial environments. Designed for controlling motors, solenoids, and actuators, this power supply offers high back power immunity and EMI suppression, ensuring stable operation in challenging conditions.
Order your Traco Power TIB480148EX industrial power supply today and ensure dependable power for demanding hazardous environment applications.
Frequently Asked Questions
Where can I buy TRACO POWER TIB480148EX?
You can click on the BUY or RFQ button to purchase TIB480148EX from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIB480148EX?
You can download the TIB480148EX datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIB480148EX?
TRACO POWER
