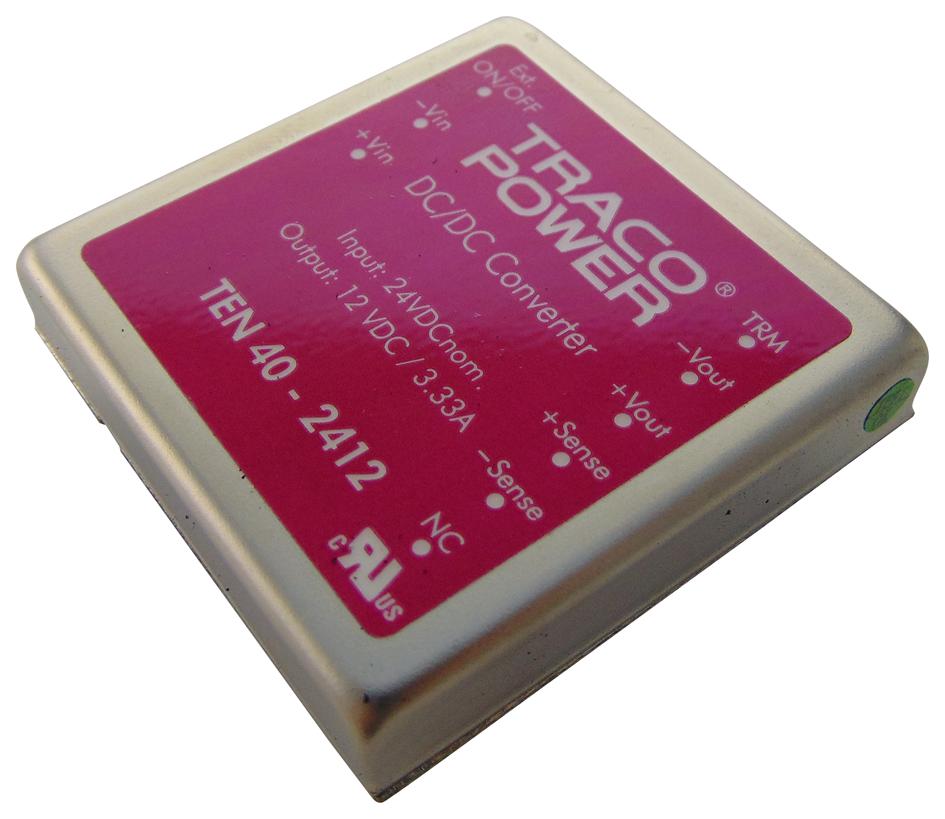

TRACO POWER TEN402412 DC/DC Converter Module
The POWER TEN 40 Series offers high-performance 40W DC/DC converter modules with a compact 51x51x10mm package, wide input voltage range, and high efficiency. These converters support single, dual, and triple outputs with regulated voltages, including 3.3V, 5V, 12V, and 15V. Suitable for battery-operated, industrial, and communication applications, they feature remote on/off, over-voltage, and short circuit protection, with an operating temperature range of -40°C to +75°C. They comply with RoHS and safety standards, ensuring reliable power conversion in space-limited designs.
TRACO POWER TEN402412 DC/DC Converter Module Specifications:
- Power Output: 40W with wide input voltage range of 4.5V to 75V
- Dimensions: 51x51x10 mm (2"x2"x0.4") compact package
- Input Current at No Load: 200mA at 12V, 100mA at 24V, 50mA at 48V
- Input Voltage Range: 4.5V to 75V DC, surge up to 100V for 100 ms
- Output Voltage Options: 3.3V, 5V, 12V, 15V with adjustable range ±10%
- Efficiency: Up to 90%, typical 84-89%
- Ripple & Noise: 50 mVpk-pk (3.3V & 5V), 150-75 mVpk-pk (others)
- Operating Temperature: -40°C to +75°C, with derating
- Isolation Voltage: 500VDC input/output
- Protection: Over voltage, short circuit, over load, thermal shutdown
- Switching Frequency: 300 kHz typical
- Compliance: RoHS, UL 60950, EN 60950
- Weight: 65g, robust shielded metal case with insulated baseplate
Buy the Traco Power Series Ten 40 Power Supply: TEN402412
Purchase the Traco Power Series TEN402412 high-reliability 40W DC/DC converter online today. Designed for industrial, communication, and battery-powered applications, this compact module features wide input voltage range, multiple regulated outputs, remote on/off, and excellent thermal and electrical protection. Its efficiency up to 90%, robust shielding, and compliance with RoHS and safety standards make it ideal for space-constrained electronics projects requiring stable, tightly regulated voltages. Get yours now for dependable power solutions with excellent durability and performance.
Order your Traco Power Series TEN402412 DC/DC converter today and ensure your industrial and communication projects operate with reliable, efficient power.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402412?
You can click on the BUY or RFQ button to purchase TEN402412 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402412?
You can download the TEN402412 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402412?
TRACO POWER
