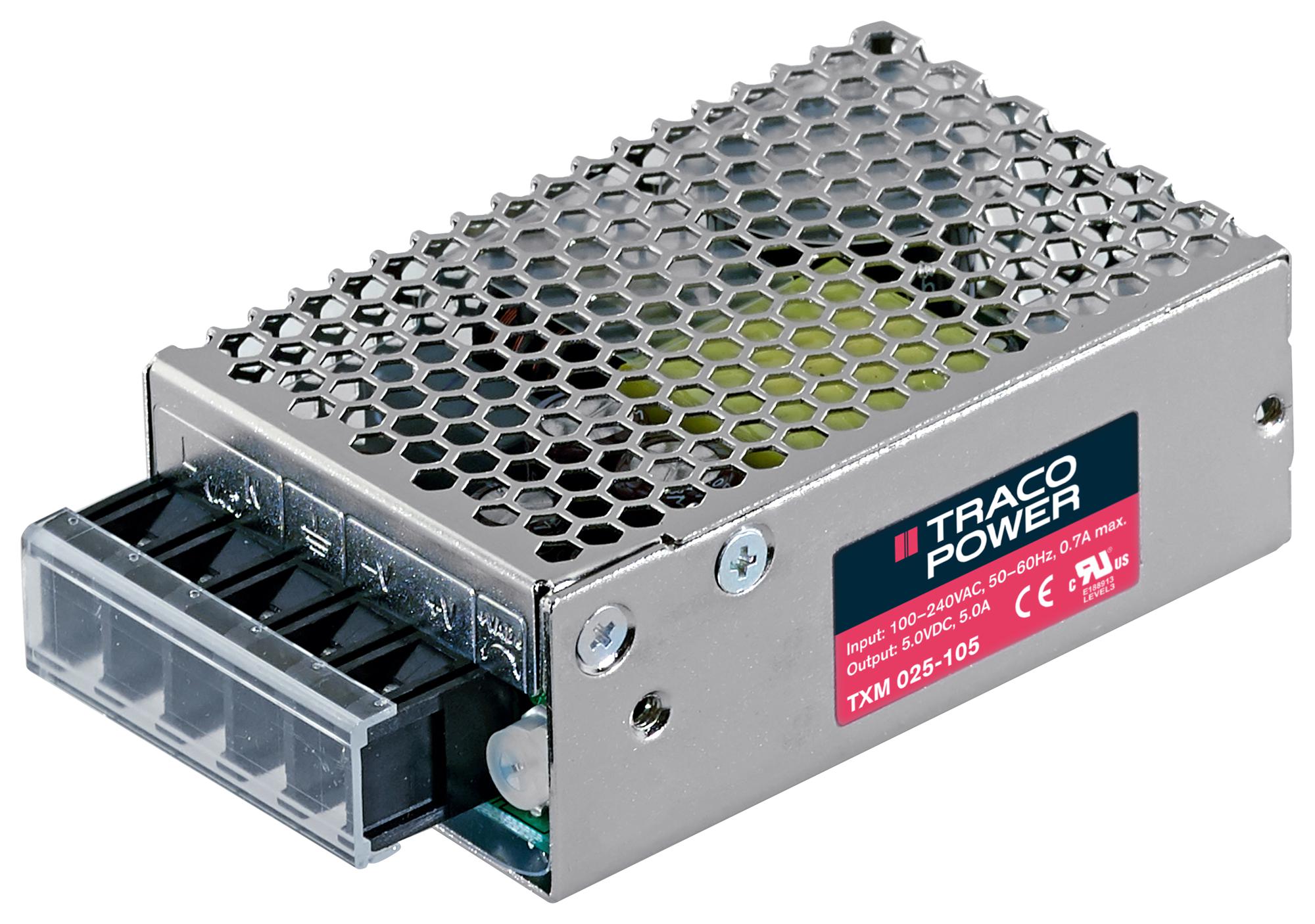

TRACO POWER TXM025112 industrial power supply
The power supply features a compact metal case, universal AC input, adjustable output voltage, high efficiency up to 85%, no internal fan up to 150W, and a broad operating temperature range up to 70°C. With robust protections including overload and overvoltage, it suits industrial, automation, and control system applications. The model provides reliable power delivery with low no-load power consumption, compliance with EMC and safety standards, and a 3-year warranty, ideal for cost-critical and high-temperature environments requiring high efficiency and durable performance.
TRACO POWER TXM025112 industrial power supply Specifications:
- Input Voltage Range: 100-240 VAC, 90-264 VAC, 127-370 VDC
- Input Frequency: 47-63 Hz
- Output Voltage: 12VDC (nominal), adjustable 11.4-13.2 VDC
- Output Power: 112 W
- Output Current Max: 9.33 A
- Efficiency: 84% at 12V outlet
- Ripple and Noise: < 1.0% of Vout nom. typical
- Operating Temperature: -20°C to +70°C, derating above 40°C
- Protection Modes: Overload, Overvoltage (105-150% Vout)
- Isolation Voltage: Input/Output 3000 VAC, Input/Case 1500 VAC
- Humidity: 90% RH non-condensing
- Dimensions: Approximate case dimensions vary per model, product weight varies from 165g to 625g
- Certifications: UL/cUL, IEC 60950-1, EN 60950-1
Buy the Traco Power Series TXM Power Supply: TXM025112
Experience reliable and efficient power delivery with the Traco Power Series TXM025112. Its compact metal case, adjustable voltage, and high efficiency of up to 85% make it suitable for diverse industrial and automation environments. Designed with no internal fan up to 150W, it ensures quiet operation even in high-temperature settings up to 70°C. With broad input voltage range and comprehensive safety and EMC certifications, this power supply guarantees stable power, increased durability, and easy installation. Purchase online today to enhance your system’s performance and reliability.
Get Traco Power TXM025112 today—built for precision, durability, and versatile industrial applications.
