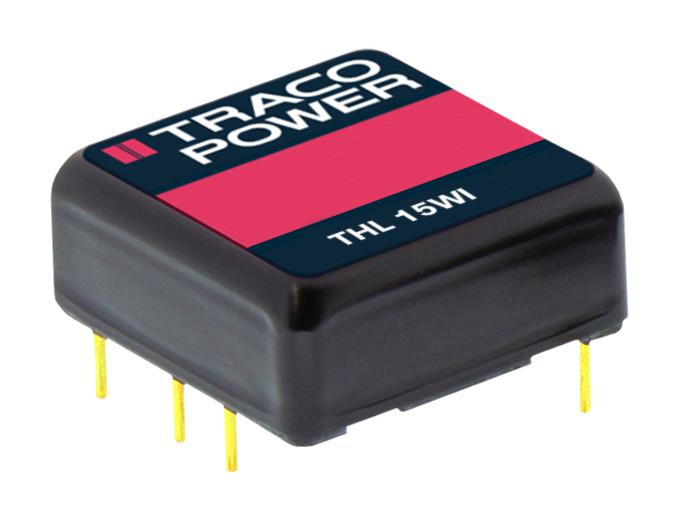

TRACO POWER THL152422WI High Efficiency DC-DC Converter
The THL 15WI series is a compact, high-efficiency 15 Watt DC/DC converter designed in a 1” x 1” metal package. It features an ultra-wide input voltage range of 9-36 VDC and 18-75 VDC, with robust protection against overload, overvoltage, and short circuits. Operating from -40°C to +70°C without derating, it includes an internal EN 55032 class A filter and offers remote On/Off and trim functions. Suitable for industrial, communication, and instrumentation applications, it guarantees reliable performance and long MTBF. Optional heatsinks enhance thermal management.
TRACO POWER THL152422WI High Efficiency DC-DC Converter Specifications:
- Power: 15 Watt
- Input Voltage Range: 9-36 VDC and 18-75 VDC
- Output Voltages: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 48 V
- Maximum Output Current: 3400 mA to 1250 mA depending on model
- Efficiency: Up to 91%
- Operating Temperature Range: -40°C to +70°C without derating
- Isolation Voltage: 1500 VDC input to output, 1800 VDC 1s
- Dimensions: 1” x 1” x 0.4” (25.4 mm x 25.4 mm x 10.16 mm)
- Protection: Overload, overvoltage, short circuit
- Filter: Internal EN 55032 class A
- Switching Frequency: 310–385 kHz
- Certifications: IEC/EN 62368-1, UL 62368-1
- Connection: Copper alloy pins with gold over nickel coating
- Housing Material: Aluminium alloy with black anodized finish
- Soldering Temperature: Max 260°C for 10 seconds
- MTBF: 1,374,700 hours
- Rel Humidity: Up to 95% non-condensing
Buy the Traco Power THL152422WI – Reliable DC-DC Converter for Industrial Applications
Order the Traco Power THL152422WI online today and secure a compact, high-performance 15 Watt DC/DC converter designed for demanding industrial, communication, and instrumentation environments. With an ultra-wide input range of 9-36 and 18-75 VDC, and efficiencies up to 91%, it ensures reliable and energy-efficient operation across a broad temperature range from -40°C to +70°C without derating. Built-in filters and protection features guarantee safety and durability, making it the ultimate choice for professional electronics and power supply needs.
Buy Traco Power THL152422WI now and experience unmatched reliability and high performance for your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER THL152422WI?
You can click on the BUY or RFQ button to purchase THL152422WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL152422WI?
You can download the THL152422WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL152422WI?
TRACO POWER
