TRACO POWER TIW06103 DC Power Supply

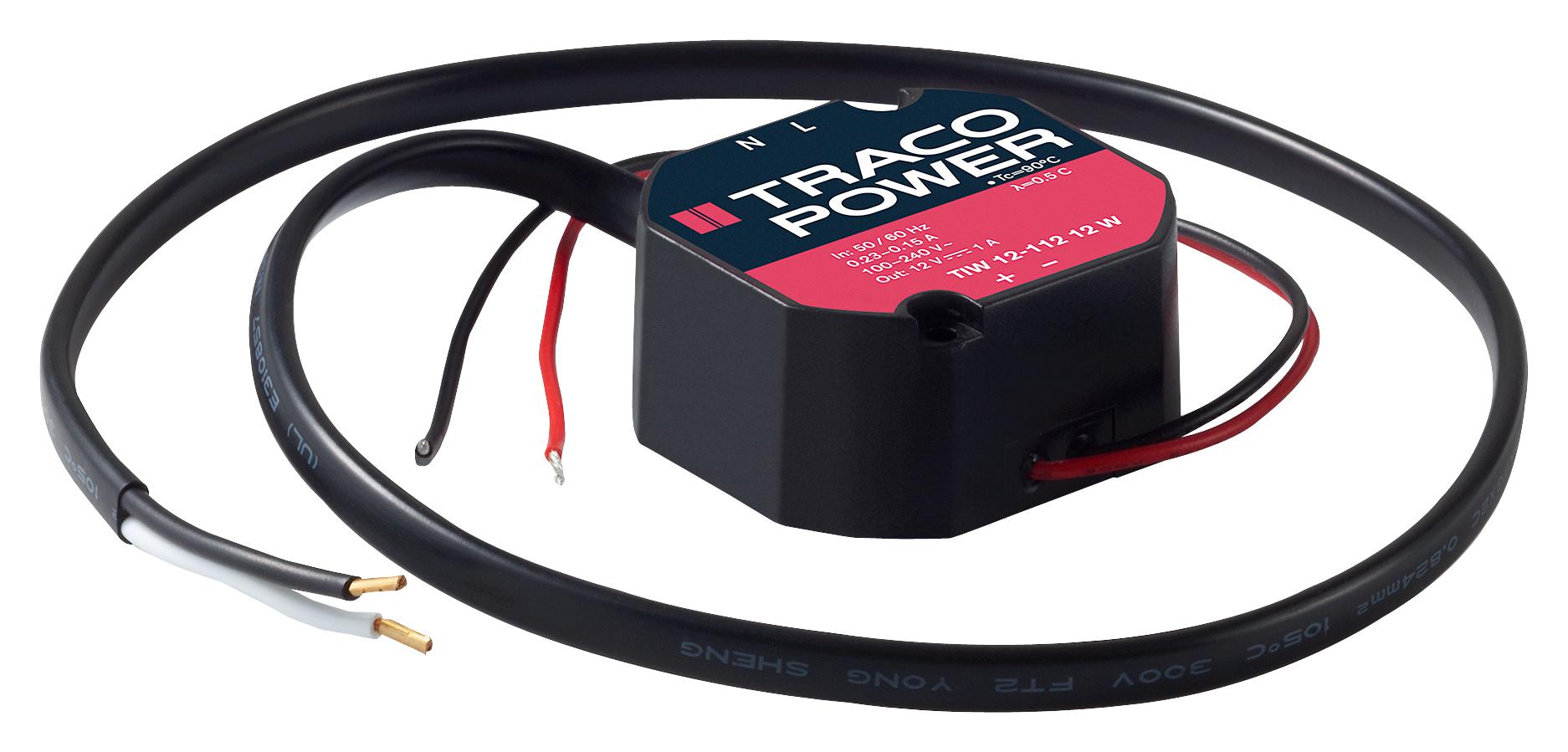

The TIW series is a compact and highly efficient range of DC power supplies designed for home and office use. Encased in fully encapsulated plastic housing, these units are dust and waterproof (IP 67). They support universal input voltage (93 to 264 VAC) and provide regulated outputs from 3.3 to 24 VDC, suitable for powering electric devices such as DC motors, controllers, and indicators in automation and security systems. Easy to install into standard flush boxes and compliant with safety and EMC standards, they offer short circuit and overload protection, operate in temperatures from -25°C to +50°C, and include a 3-year warranty.
TRACO POWER TIW06103 DC Power Supply Specifications:
- Input voltage range: 93-264 VAC, 47-63 Hz
- Output voltage options: 3.3 VDC, 5 VDC, 6 VDC, 12 VDC, 15 VDC, 24 VDC
- Output current: up to 12A for 3.3V, 10A for 5V & 6V, 10A for 12V, 8A for 15V, 5A for 24V
- Efficiency at 230 VAC: 75-80%
- Operating temperature: -25°C to +50°C
- Protection class: II
- Housing protection: IP 67
- Dimensions: Compact module fits standard flush boxes
- Connection wires: 2x 160 mm input (AWG 18), 2x 200 mm output (AWG 20)
- Safety approvals: IEC/EN 60950-1, CB, GS
- EMC standards: EN 61000-6-3, EN 61000-6-2
- Electrical safety: Overload, short circuit, over-temperature protection
- Mechanical: Vibration and shock resistant per IEC standards
- Weight: 80 g
Buy the TracoPower TIW Series – Reliable DC Power Supplies for Industrial Applications
Upgrade your home or office automation systems with the TracoPower TIW series DC power supplies. These compact, fully encapsulated modules feature universal input voltage (93-264 VAC), multiple output voltages (3.3 to 24 VDC), and high efficiency for reliable performance. Designed for easy installation into standard flush boxes, they offer safety certifications, IP67 waterproof protection, short circuit and overload protection, and operate in temperatures from -25°C to +50°C. Strong build quality ensures durability and long-term stability for industrial, security, and automation applications. Buy online today for dependable power solutions.
Order your TracoPower TIW series power supply today and ensure reliable, safe, and efficient power for your automation and security projects.
