TRACO POWER TEN602425WIR Railway DC-DC Converter

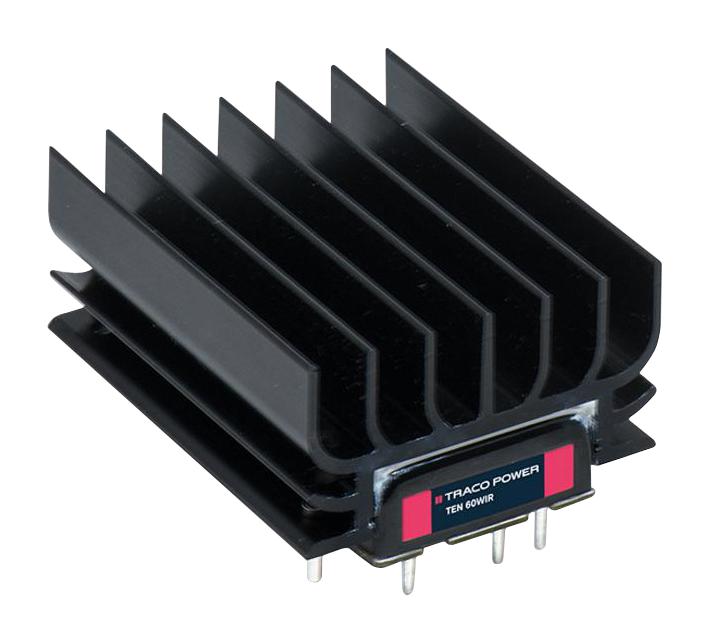

The TEN 6OWIR is a ruggedized 60 Watt railway-approved DC-DC converter series, featuring a compact 2”x1” metal package with a standard heatsink. It offers a wide 4:1 input voltage range from 9-36 VDC up to 36-160 VDC and is qualified for railway applications with EN 50155 and EN 61373 standards. The converter boasts efficiency up to 92%, operates from -40°C to +70°C without derating, and includes features like adjustable output voltage, remote On/Off, input/output isolation of 3000 VDC, and a 3-year warranty, making it ideal for critical transportation systems.
TRACO POWER TEN602425WIR Railway DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 60 Watts
- Efficiency: Up to 92%
- Operating Temperature Range: -40°C to +70°C (without derating)
- Isolation Voltage: 3000 VDC (input/output)
- Adjustable Output Voltage: ±10% to +20%
- Remote On/Off: Yes
- Input Surge Voltage: 50-200 VDC
- Holding Top Case Temperature: 115°C
- Certifications: EN 50155, EN 61373, EN 45545-2, IEC/EN 62368-1, UL 62368-1
- Vibration & Shock Resistance: Yes
- External Heatsink Included
- Efficiency: Typical 92%
- Power Supply Class: Industrial transportation equipment
- Compliance: RoHS, Reach, EMC emissions and immunity standards
Buy the Traco Power Series TEN 6OWIR Railway DC-DC Converter: TEN602425WIR
Discover the rugged and efficient Traco Power Series TEN 6OWIR railway DC-DC converter, offering 60 Watts of power with a wide input range. Certified for railway safety standards, it features up to 92% efficiency, remote On/Off capability, and input/output isolation of 3000 VDC. The compact 2”x1” package includes a heatsink and operates from -40°C to +70°C without derating, making it ideal for demanding transportation and industrial applications. Buy online now for dependable power in critical projects.
Order your Traco Power Series TEN 6OWIR 60 Watt railway DC-DC converter today and ensure reliable, stable power for your transportation systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN602425WIR?
You can click on the BUY or RFQ button to purchase TEN602425WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN602425WIR?
You can download the TEN602425WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN602425WIR?
TRACO POWER
