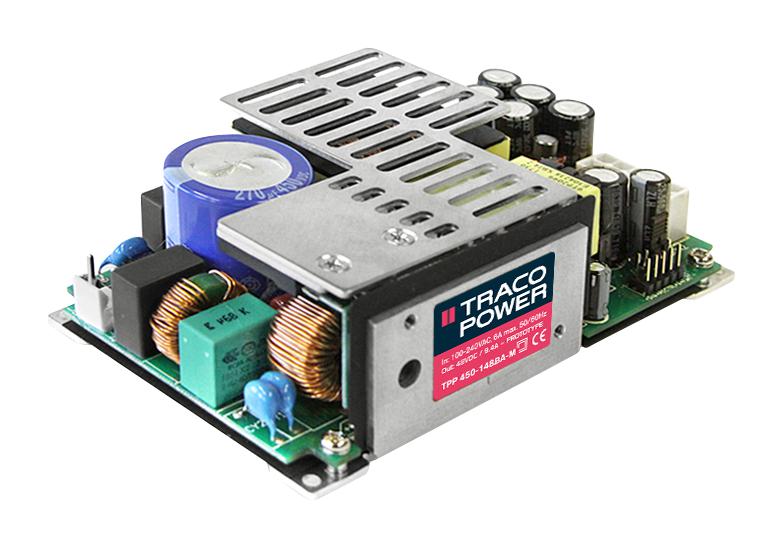

TRACO POWER TPP450124BAM Medical Power Supply
The TPP 450BA-M Series is a 450-Watt medical power supply designed for demanding healthcare applications. It features high efficiency up to 94%, reinforced double 1/0 isolation per IEC/EN/ES 60601-1 standards (2 x MOPP), and is suitable for BF applications with leakage current below 100 pA. The open-frame design measures 3" x 5", supports forced air or natural convection cooling, and includes multiple output voltages such as 24 VDC, with adjustable regulation. It offers excellent thermal management, high reliability, and compliance with EMC and safety standards, making it ideal for medical devices requiring space and safety-critical power management.
TRACO POWER TPP450124BAM Medical Power Supply Specifications:
- Power output: 450 Watts with forced air cooling, 320 Watts convection cooled up to 50°C
- Efficiency: up to 94%
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 63 Hz
- Output Voltage: 24 VDC (22.1 - 25.9 VDC), adjustable by 8%
- Output Current: 18,750 mA (max), regulation within ±1%
- Ripple and Noise: 240 mVp-p typical at 20 MHz bandwidth
- Dimensions: 3" x 5" open frame
- Isolation: 4000 VAC input to output, reinforced insulation, BF rated
- Leakage Current: < 100 pA
- Standby Power Output: 5 V, 2000 mA max
- Cooling Options: Forced air (with external fan) or natural convection
- Standby Mode: Remote On/Off control, variable fan speed
- Operating Altitude: up to 5000 meters
- Protection: Overvoltage, overload, short circuit, over-temperature latch-off
- Certifications: IEC 60601-1, IEC 62368-1, UL 62368-1, EN 45545-2
- Environmental: Operating temperature -40°C to +85°C, humidity up to 95%
Buy the Traco Power TPP450124BAM – Reliable Medical Power Supply for Industrial Applications
Order the Traco Power TPP450124BAM today and ensure your medical devices operate with high efficiency, safety, and reliability. This 450-watt power supply features reinforced isolation, medical certification (IEC 60601-1), and options for forced air or convection cooling. Its compact 3" x 5" open-frame design allows easy integration into space-critical environments. With adjustable outputs, excellent thermal management, and a 5-year warranty, it provides dependable power for demanding healthcare and safety-critical applications, ensuring your equipment stays operational and safe in any environment.
Buy Traco Power TPP450124BAM now and experience unmatched reliability and performance in medical device power solutions.
