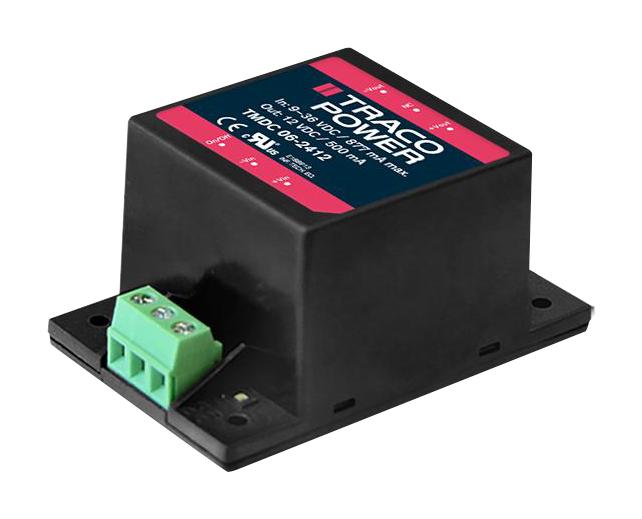

TRACO POWER TMDC062422 Industrial DC/DC Converter
The TMDC 06 series is a 6-watt DC/DC converter designed for harsh industrial environments. Fully encapsulated in a compact plastic package, it offers an ultra-wide 4:1 input voltage range from 9-36 VDC or 18-75 VDC, with regulation, overload, and short circuit protection. Features include integrated filters for emissions and immunity (EN 55032, EN 55035), DC-OK and remote On/Off functions, and a 3-year warranty. Operating from -40°C to +80°C without derating, it is suitable for industrial automation, control systems, and manufacturing applications requiring high EMC immunity and isolation up to 3000 VDC.
TRACO POWER TMDC062422 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC with 4:1 ratio
- Output Power: 6 W
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +80°C without derating
- Efficiency: Up to 85%
- Dimensions: 2.09 x 1.34 x 1.04 inches (53 x 34 x 26.5 mm)
- Protection: Overload, undervoltage, short circuit, DC-OK, remote On/Off
- Input Current at full load: 300 mA (24 V), 150 mA (48 V)
- Ripple & Noise: 75 mVp-p (at 20 MHz bandwidth)
- Certification: UL 62368-1, IEC 62368-1, EN 62368-1
- EMC Immunity & Emissions: EN 55032 (Class A), EN 55035
- Response Time: 30 ms, Magnetic & RF Field Immunity, Pollution Degree: PD3
- Housing: Fully encapsulated plastic, UL 94V-0 rated
- Switching Frequency: 370 kHz typ.
- Remote Control: Voltage controlled, 3.5-12 VDC on, 0-1.2 VDC off
- Weight: 499 grams
Buy the Traco Power Series TMDC062422 Industrial DC/DC Converter: Reliable Power Supply
Enhance your industrial setups with the Traco Power TMDC 06 series 6 Watt DC/DC converter, offering exceptional EMC immunity, wide input range, and robust protection features. Fully encapsulated in a compact design, it operates reliably from -40°C to +80°C without derating. This converter is ideal for harsh environments, providing stable regulated outputs, high efficiency up to 85%, and multiple safety certifications. Order online now and ensure your industrial projects benefit from proven, resilient power conversion technology designed for demanding applications.
Order your Traco Power TMDC 06 series 6 Watt DC/DC converter today and give your industrial systems the dependable power quality they need.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC062422?
You can click on the BUY or RFQ button to purchase TMDC062422 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC062422?
You can download the TMDC062422 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC062422?
TRACO POWER
