TRACO POWER TEQ1002415WIR industrial DC/DC converter
The TEQ 100WIR series from Traco Power consists of high-performance, isolated DC/DC converters with a rugged, sealed metal casing. Designed for industrial applications where PCB mounting is not feasible, these modules can be mounted directly onto a chassis. They feature an ultra-wide 4:1 input voltage range with reverse voltage protection, making them suitable for battery-powered systems. The series includes features such as output voltage trimming, remote on/off control, undervoltage lockout, soft-start, output current limiting, overvoltage protection, and automatic recovery short circuit protection. Certified according to IEC/EN 60950-1, UL 508, CSA C22.2 No. 107.01-01, and UL 60950-1 standards, these converters support input voltages of 24V, 48V, or 110V DC, with output voltages of 12V, 24V, 28V, or 48V DC. They provide maximum output currents up to 8.4A, with efficiencies up to 90%. Designed for high power and excellent thermal convection, they are approved for railway applications (EN 50155) and meet electromagnetic compatibility standards (EN 55022, Class A). The ripple and noise levels are kept within 125mVp-p to 350mVp-p depending on the model. Their isolation voltage is 2250VDC for I/O and 1600VDC between input and case, with switching frequencies of 250kHz to 300kHz. Operating temperature ranges from -40°C to 105°C, with full performance up to +85°C without derating.
TRACO POWER TEQ1002415WIR industrial DC/DC converter Specifications:
- Input Voltage: 12 VDC (9.6 ~ 13.2), 24 VDC (19.2 - 26.4), 48 VDC (38.4 - 52.8), 110 VDC (22.4 - 30.8), 43 - 160 VDC
- Output Voltage: 12 V, 24 V, 28 V, 48 V DC
- Output Current Max: 8.4A (at 12 V), 4.24A (at 24V), 3.6A (at 28V), 21A (at 48V)
- Efficiency: Up to 90%
- Isolation Voltage (Input/Output): 2250 VDC, (Input/Case): 1600 VDC
- Ripple & Noise: 125 mVp-p to 350 mVp-p depending on model
- Operating Temperature: -40°C to +105°C, full power up to +85°C without derating
- Storage Temperature: -40°C to +105°C
- Switching Frequency: 250 kHz to 300 kHz
- Certifications: IEC/EN 60950-1, UL 508, CSA C22.2, EN 50155
- Dimension: Length 103.2mm, Width 74.2mm, Height 87.6mm, Weight 800g
- Impact Resistance & Vibration: EN61373, MIL-STD-810F
- Protection Features: Overvoltage, short circuit (hiccup), undervoltage lockout, reverse voltage protection
- Surge Voltage (1 sec max): 50V (24V models), 100V (48V models), 185V (110V models)

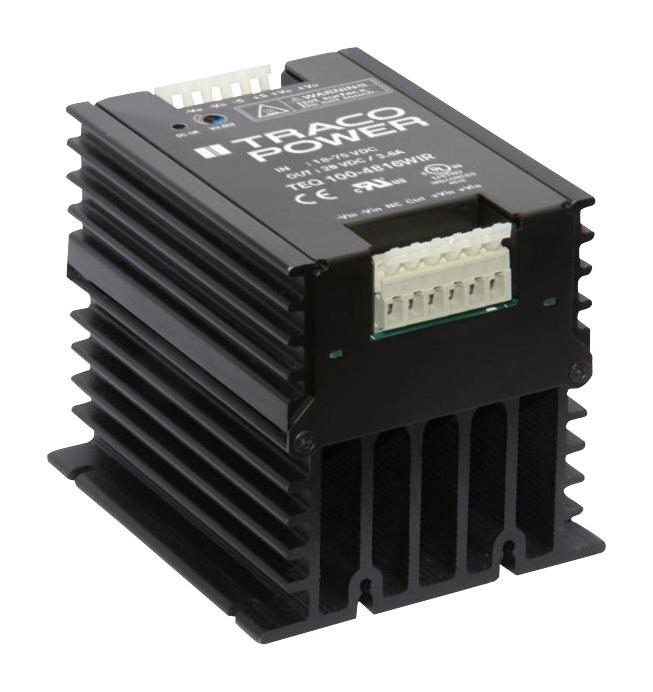

Buy the Traco Power Series TEQDCDC24V: TEQ 100WIR
Order the Traco Power TEQ 100WIR series online today to secure a high-efficiency, sealed industrial DC/DC converter. Designed to operate across a wide temperature range up to +105°C, these converters deliver up to 90% efficiency, ensuring reliable power conversion in demanding environments. Features include extensive safety certifications, electromagnetic compatibility, high isolation voltage, and adjustable output voltage. Perfect for industrial, transportation, and battery-powered systems where durability, safety, and performance are critical. Get yours now for seamless integration and dependable operation.
Buy Traco Power TEQ 100WIR now and experience unmatched reliability and high efficiency for industrial and railway power applications.
