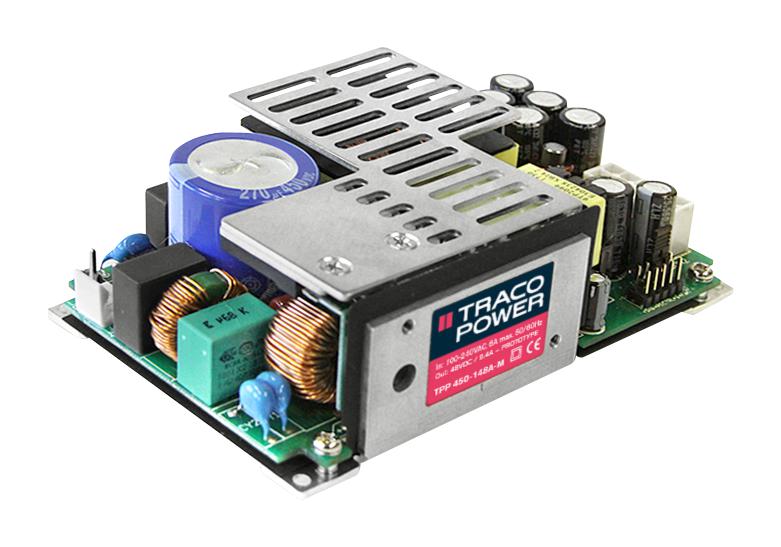

TRACO POWER TPP450115AM Medical Power Supply
The TPP 450A Series is a high-reliability, medical-grade power supply offering 450 Watts of power with forced air cooling or natural convection options. It features medical safety certification IEC/EN/ES 60601-1, EMC compliance, BF application suitability with low leakage current, and an integrated variable fan speed controller for quiet operation. Designed for demanding medical environments, it supports input voltages from 85 to 264 VAC, provides multiple output voltages with high efficiency up to 94%, and operates at altitudes up to 5000 m. The power supply includes comprehensive protections, thermal management, and optional casing with internal fan for versatile use in medical devices.
TRACO POWER TPP450115AM Medical Power Supply Specifications:
- Output Power: 450 Watt
- Output Voltage: 15 VDC / 24 VDC / 36 VDC / 48 VDC
- Output Current: 16.6 A / 13.3 A / 8.86 A / 6.65 A
- Input Voltage Range: 85 - 264 VAC / 120 - 370 VDC
- Efficiency: Up to 94%
- Protection: Overvoltage (110-135%), Overload (115-150%), Short circuit (automatic recovery)
- Isolation Voltage: 4000 VAC input to output, 2500 VAC input/output to ground
- Operating Temperature: -40°C to +85°C
- Altitude: up to 5000 m
- Ripple & Noise: 250 - 530 mVp-p (20 MHz bandwidth)
- RF & EMI Compliance: IEC 60601-1-2, EN 55032, EN 55024 standards
- Dimensions: approximately 3 x 5 inches (76 x 127 mm)
- Operating at 50°C-85°C, with thermal derating
- Features: Power Good Signal, Remote On/Off, variable fan speed, standby 5 V/2 A
- Protection Class: Class I with PE connection
- Warranty: 5 years
Buy the Traco Power Series TPP 450A Power Supply: TPP 450-145A-M
Purchase the Traco Power TPP 450A Series online today to ensure your medical device operates with high efficiency and safety. This 450-watt power supply delivers reliable performance, low leakage current, and comprehensive safety standards compliance. Its high efficiency up to 94% reduces power consumption, while optional casing and internal fan options make installation flexible. With features like remote control, power good signal, and thermal management, it’s ideal for space-critical and demanding medical environments. Ensure your medical systems are powered with trusted reliability—order now!
Buy Traco Power TPP 450-145A-M now and experience unmatched reliability and performance in medical applications.
Frequently Asked Questions
Where can I buy TRACO POWER TPP450115AM?
You can click on the BUY or RFQ button to purchase TPP450115AM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP450115AM?
You can download the TPP450115AM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP450115AM?
TRACO POWER
