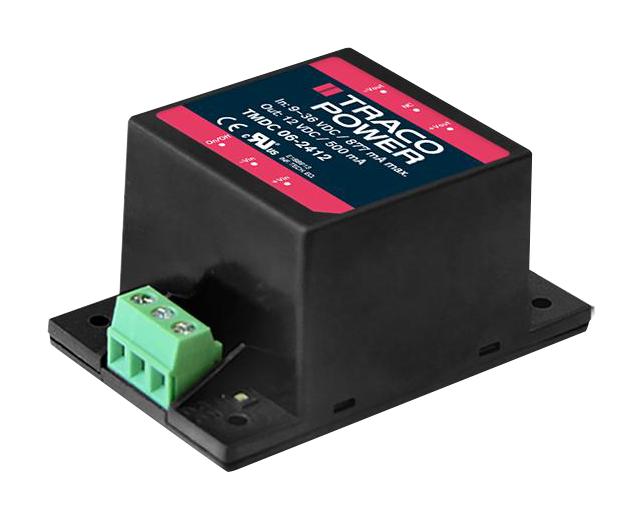

TRACO POWER TMDC062425 Industrial DC/DC Converter
The TMDC 06 series is a compact, fully encapsulated industrial DC/DC converter providing 6 Watts of power. Designed for harsh environments, it features an ultra wide input voltage range of 9-36 VDC or 18-75 VDC, with high efficiency up to 85%. It offers robust EMC immunity, 3000 VDC isolation, and operation from -40°C to +80°C without derating. Equipped with integrated filters, remote on/off, LED indicators, and safety approvals (UL 62368-1), this module suits demanding industrial automation, control systems, and electronic equipment requiring reliable power conversion in severe conditions. Its durable plastic housing ensures long-term stability and compliance with safety standards.
TRACO POWER TMDC062425 Industrial DC/DC Converter Specifications:
- Power Output: 6 Watts
- Input Voltage Range: 9-36 VDC or 18-75 VDC, ultra wide 4:1 ratio
- Efficiency: Up to 85%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +80°C without derating
- Voltage Regulation: ±2%
- Ripple & Noise: 75 mVp-p (single output models)
- Dimensions: 2.09 x 1.34 x 1.04 inches (53 x 34 x 26.5 mm)
- Housing Material: UL 94V-0 rated plastic
- Protection: Overload, undervoltage, short circuit
- Safety Certifications: UL 62368-1, IEC 62368-1
- Ingress Protection: Fully encapsulated
- Remote On/Off Function, LED indicators, EMI filters
- Fire Safety: Meets industry EMC standards EN 55032, EN 55035
- Connection: Screw terminal
- Weight: 499 grams
Buy the Buy Traco Power DC/DC Converter Part Number TMDC062425 Online
Purchase the Traco Power TMDC062425 online today to benefit from a highly reliable 6-watt industrial DC/DC converter. Featuring ultra wide input voltage, high efficiency of up to 85%, and full encapsulation, this module is ideal for demanding harsh environments. Its robust EMI filters and 3000 VDC isolation ensure compliance with stringent safety standards. Designed for seamless integration, it supports remote on/off, LED status indication, and operation across -40°C to +80°C without derating. Upgrade your industrial system with this durable and high-performance power module for maximum reliability and safety.
Buy Traco Power TMDC062425 now and ensure reliable power conversion with high EMC immunity and ultra wide input voltage range for industrial use.
