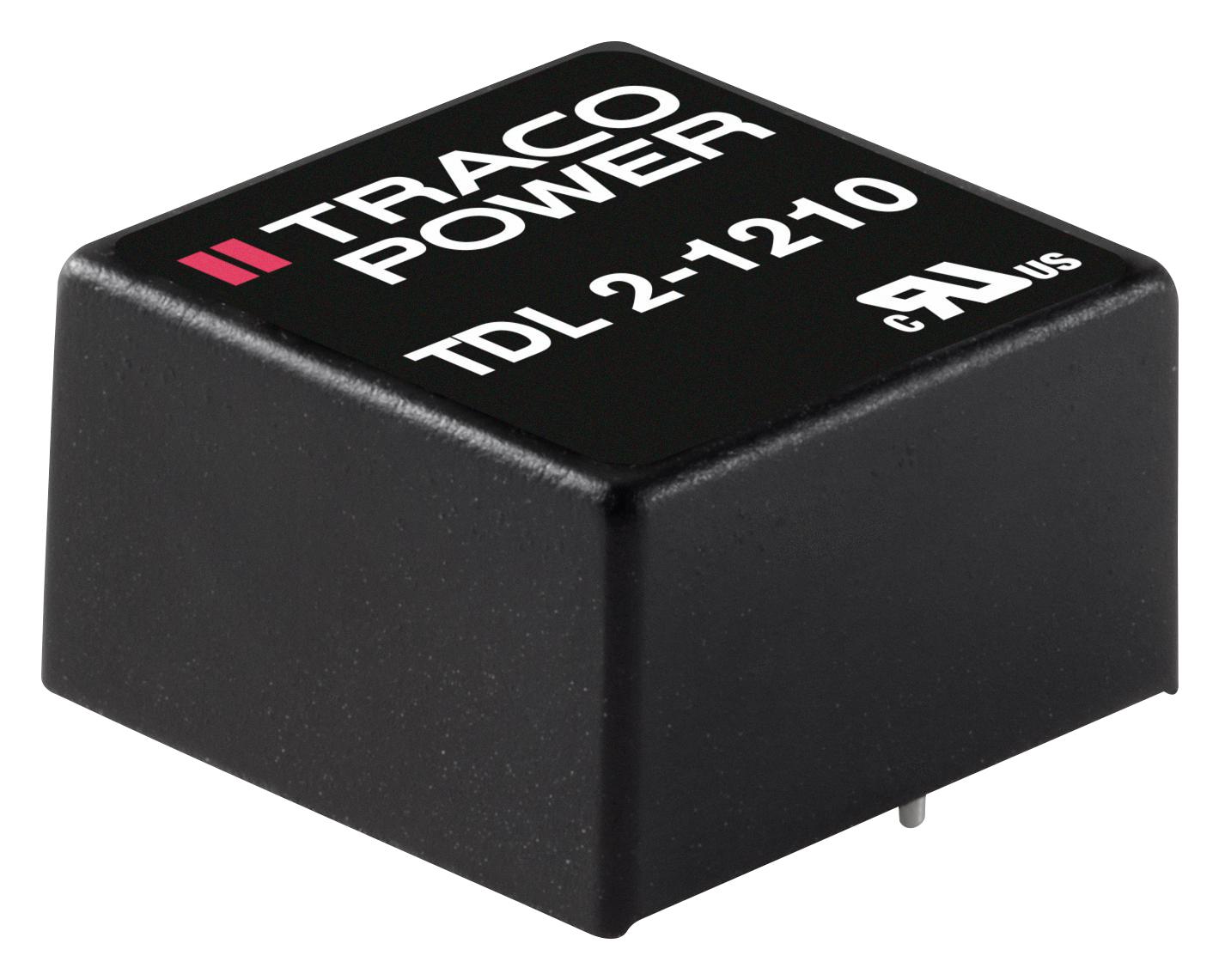

TRACO POWER TDL20513 DC/DC Converter
The TDL 2 series from TracoPower offers 2W, single and dual output DC/DC converters in a compact DIP package measuring 14mm wide, 8mm high, and 14mm deep. They feature a wide 2:1 input voltage range, automatic short circuit protection, and current limiting. Inputs are available for 5V, 12V, 24V, or 48V DC, with various output voltages including 3.3V, 5V, 12V, 15V, and ±5V, ±12V, ±15V. Maximum output currents vary according to the model, with efficiencies up to 87%. They provide an I/O isolation voltage of 1500VDC for 60 seconds, with typical isolation capacitance of 100pF and resistance greater than 1GΩ. Ripple and noise at 20MHz bandwidth is typically 70mVp-p. Approved under UL 60950-1 and IEC/EN 60950-1 safety standards, these converters operate from -40°C to 70°C and come with a 3-year warranty.
TRACO POWER TDL20513 DC/DC Converter Specifications:
- Input Voltage Range: 5V, 12V, 24V, 48V DC
- Output Voltages: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Maximum Output Current: 15V model 134mA, other models vary
- Isolation Voltage: 1500VDC for 60 seconds
- Efficiency: Up to 87%
- Ripple and Noise: 70mVp-p (20 MHz bandwidth)
- Operating Temperature: -40°C to +70°C
- Dimensions: 14mm x 14mm x 8mm
- Protection: Short circuit, current limiting
- Safety Standards: UL 60950-1, IEC/EN 60950-1
- Isolation Capacitance: 100pF, Resistance: >1GΩ
- Soldering Temperature: Max 260°C for 10 sec
- Case Material: FR4, Silicone potting
- Weight: 3.9g
- Switching Frequency: 100 kHz min
- Certifications: UL, IEC/EN
Buy the Traco Power TDL 2-0513 – Reliable DC/DC Converter for Industrial Applications
Order the Traco Power TDL 2-0513 online today and enjoy quick delivery and competitive pricing. These 2W DC/DC converters ensure high efficiency, robust isolation, and reliable operation in industrial environments. Perfect for power supply applications requiring wide input voltage range, excellent regulation, and safety compliance. Secure your supply chain with a product backed by a 3-year warranty, UL and IEC safety certifications, and proven durability in harsh conditions. Purchase now to optimize your industrial system performance.
Buy Traco Power TDL 2-0513 now and experience unmatched reliability and high efficiency for your industrial power needs.
