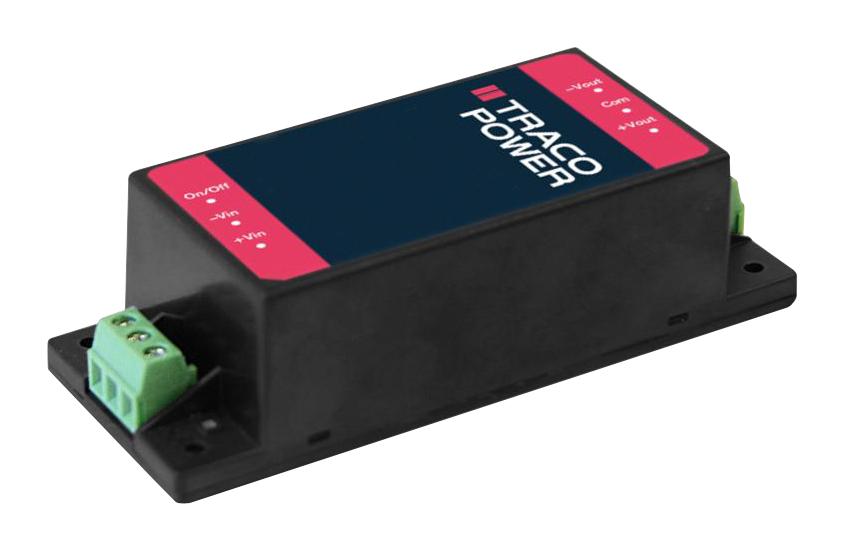

TRACO POWER TMDC104823 Industrial DC/DC Converter
The TMDC 10 Series is a 10-watt fully encapsulated industrial DC/DC converter designed for harsh environments. It features an ultra-wide 4:1 input voltage range (9-36 VDC or 18-75 VDC), high efficiency (up to 86%), and robust isolation of 3000 VDC. The module provides regulated outputs, integrated filters for EMI compliance (EN 55032 class A and EN 55035 immunity), and operates over -40°C to +80°C without derating. It includes safety certifications (UL 62368-1), remote on/off, and safety features like overload, short circuit, and undervoltage protections, making it well-suited for industrial automation and control applications.
TRACO POWER TMDC104823 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 10 Watts
- Dimensions: 3.11" x 1.34" x 0.87" (79 mm x 34 mm x 22 mm)
- Isolation Voltage: 3000 VDC
- Operating Temperature Range: -40°C to +80°C without derating
- Efficiency: Up to 86%
- EMC Compliance: EN 55032 class A, EN 55035 immunity
- Protection: Overload, short circuit, undervoltage
- Remote ON/OFF Input: 3.5-12 VDC / 0-1.2 VDC
- Certifications: UL 62368-1, IEC 62368-1
- Cooling: Natural convection, high reliability
- Housing Material: UL 94V-0 rated plastic
- Input Harmonics Surge Voltage: 50V @ 24V input, 100V @ 48V input
- Ripple and Noise: 90 mVp-p (typ.)
- MTBF (Mean Time Between Failures): 4,100,000 hours
Buy the Traco Series TMDC DC/DC Converter: TMDC 10-4823
Enhance your industrial applications with the highly reliable Traco Power TMDC 10-4823 DC/DC converter. Featuring wide input range, robust isolation of 3000 VDC, and high efficiency up to 86%, this compact and encapsulated module ensures stable regulated outputs in harsh environments. Certified to UL 62368-1 and designed with integrated filters for EMC compliance, it offers excellent protection features like overload, short circuit, and undervoltage protection. Perfect for automation, control systems, and automation equipment requiring resilient and efficient power solutions.
Buy Traco Power TMDC 10-4823 now and experience unmatched reliability and industrial-grade performance in your power conversion solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC104823?
You can click on the BUY or RFQ button to purchase TMDC104823 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC104823?
You can download the TMDC104823 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC104823?
TRACO POWER
