TRACO POWER TMDC202412 High-Performance Power Converter
The TMDC 20 Series includes encapsulated 20-watt DC/DC converters designed for high efficiency up to 91% and reliable operation across a temperature range of -40°C to +90°C. Featuring a compact, low-profile plastic case, they support a wide 4:1 input voltage range with options for remote On/Off, power good LED, and optional DIN-Rail mounting. These converters provide excellent EMC compliance, overload and short circuit protection, and do not require a minimum load, making them suitable for industrial applications needing stable, efficient power conversion.
TRACO POWER TMDC202412 High-Performance Power Converter Specifications:
- Input voltage range: 5.1 VDC to 48 VDC with 4:1 wide input range
- Output voltage: 4.8 VDC to 5.1 VDC or 12 VDC to 48 VDC
- Maximum output current: up to 4000 mA
- Efficiency: up to 91%
- Operating temperature: -40°C to +90°C with derating above 85°C
- Isolation voltage: 2500 VDC input/output
- Dimensions: 83 mm x 23.5 mm x 13.2 mm (approximate)
- Certification: UL, EN 60950-1, RoHS, Reach compliant
- Surge voltage: 50 V to 100 V max for 100 ms
- Remote On/Off control, power good indicator, no minimum load required
- Protection: overload, short circuit, overvoltage
- Temperature coefficient: +0.02 %/K
- Switching frequency: 285 kHz
- Humidity: up to 95% RH non-condensing

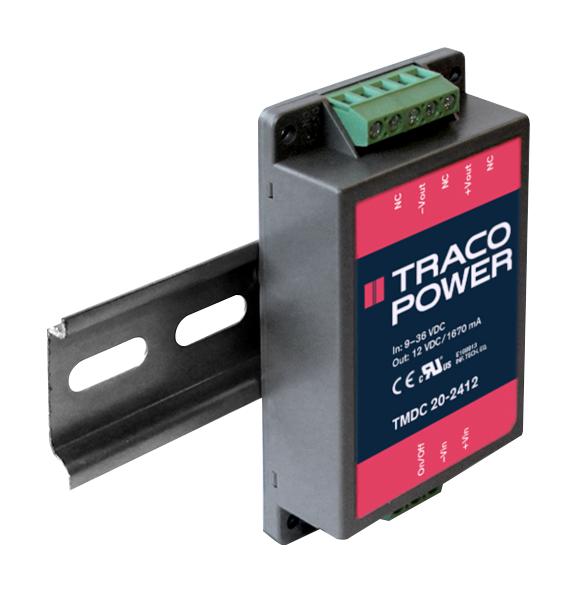

Buy the TracoPower Series TMDC 20 Power Supply: TMDC202412
Purchase the TracoPower TMDC202412 high-performance power converter online today for reliable 20-watt power solutions. Its high efficiency up to 91%, wide input voltage range, and compact design make it ideal for industrial and automation applications. With features like remote On/Off, green power good LED, and protection against overload and short circuit, this converter ensures stable power delivery in demanding environments. Order now and experience the durability and consistent performance that professionals trust for their power conversion needs.
Get TracoPower TMDC202412 today—built for high efficiency and industrial reliability.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC202412?
You can click on the BUY or RFQ button to purchase TMDC202412 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC202412?
You can download the TMDC202412 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC202412?
TRACO POWER
