TRACO POWER TMDC407212H Industrial DC/DC Converter
The TMDC 40H series from Traco Power offers fully encapsulated 40 Watt DC/DC converter modules designed for harsh industrial environments. Featuring high efficiency up to 89%, a 2:1 input voltage range of 80-160 VDC, reinforced 3000 VAC isolation, and broad operating temperature from -40°C to +75°C without derating. Equipped with Ultra-compact plastic packaging, internal EMI filters for EN 55032 emission compliance, and immunity (EN 55035). Safety certified under UL 62368-1, IEC 62368-1, these modules support multiple output configurations, remote on/off, and overload protections, ideal for demanding industrial and battery applications.
TRACO POWER TMDC407212H Industrial DC/DC Converter Specifications:
- Input Voltage Range: 80-160 VDC with 2:1 input ratio
- Output Power: 40 Watts
- Efficiency: up to 89%
- Input Current: 10 mA no load, 415 mA full load
- Surge Voltage: 170 VDC max for 100 ms
- Isolation Voltage: 3000 VAC reinforced
- Operating Temperature: -40°C to +75°C without derating
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, ±12 V, ±15 V, 48 V
- Ripple & Noise: 50-200 mVp-p depending on output
- Protection: Short circuit, overload, undervoltage, overvoltage
- Certifications: UL 62368-1, IEC 62368-1, EN 55032/EN 55035 EMC compliance
- Dimensions: Fully encapsulated plastic case, approx. 58 x 25 x 15 mm
- Connection: Screw terminals, remote on/off control, LED indicator
- Vibration & Humidity: IEC 60068-2-6, 95% non-condensing

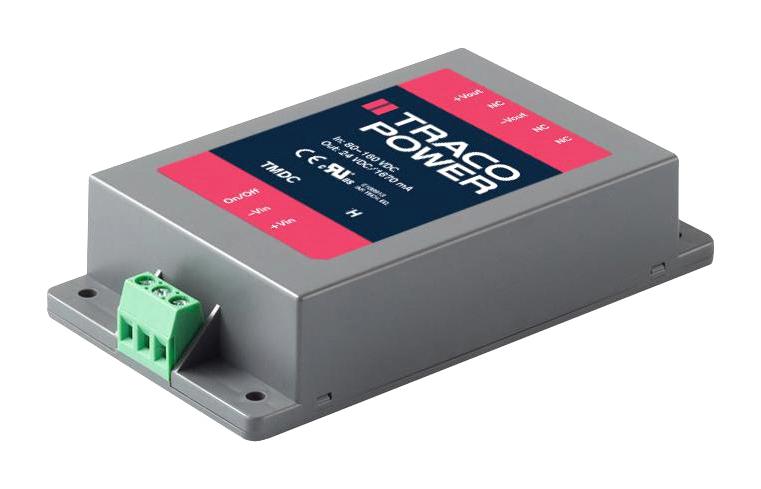

Buy the Traco Power Series TMDC 40H DC/DC Converter: TMDC407212H
Upgrade your industrial power solutions with the Traco Power Series TMDC 40H DC/DC Converter, a 40-watt, fully encapsulated module with wide input voltage, high efficiency, reinforced 3000 VAC isolation, and excellent EMC performance. Designed for demanding environments, it features multiple output options, safety certifications, and advanced protections including short circuit, overload, and overvoltage. Ideal for harsh industrial settings and battery-powered applications, this rugged module ensures safe, reliable, and efficient power conversion. Buy online today for high-quality power management.
Order your Traco Power Series TMDC 40H DC/DC Converter today and give your industrial projects the dependable quality they deserve with high efficiency and reinforced isolation.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC407212H?
You can click on the BUY or RFQ button to purchase TMDC407212H from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC407212H?
You can download the TMDC407212H datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC407212H?
TRACO POWER
