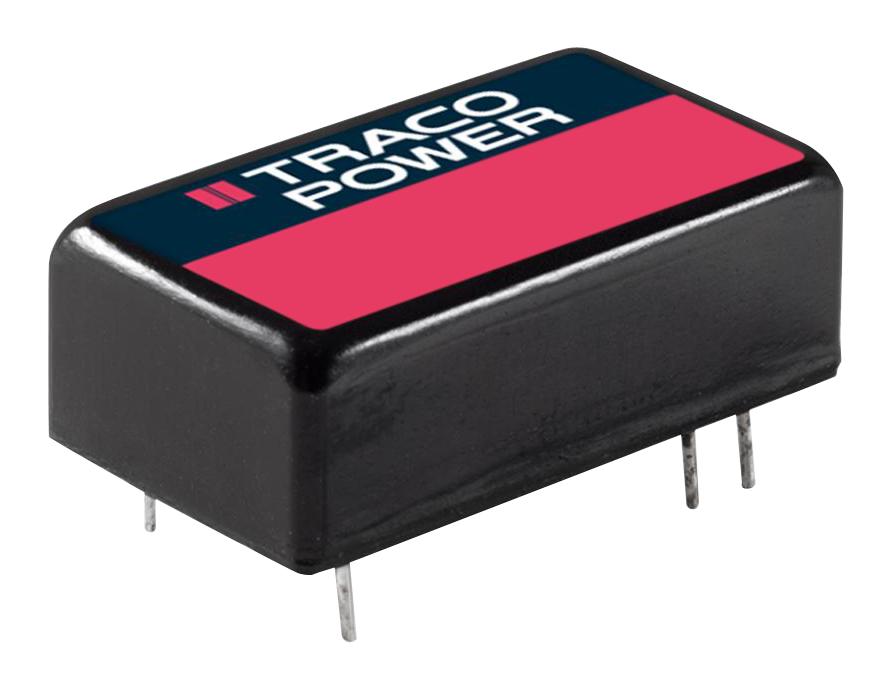

TRACO POWER TEL104815 DC/DC Converter
The TEL 10 series is a compact 10 Watt DC/DC converter range housed in a durable DIP-16 metal case with an insulated base plate. Offering a wide 2:1 input voltage range from 9 V to 48 V, these converters deliver efficiencies up to 88%, supporting full load operation at temperatures up to +70°C and even +85°C at 50% load. They include built-in filtering to meet EN 55032 class A standards, feature automatic short-circuit protection, and are suitable for space-critical applications in industrial electronics, instrumentation, and IT with high power density and reliable performance.
TRACO POWER TEL104815 DC/DC Converter Specifications:
- Power: 10 Watt
- Input Voltage Range: 9 V to 48 V (wide 2:1 ratio)
- Input Current: At full load 12 V: 970 mA, 24 V: 480 mA, 48 V: 240 mA
- Output Voltage Options: 3.3 V, 5.1 V, 12 V, 15 V, 24 V, -12 V, -15 V
- Output Current: 416 - 833 mA depending on model
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +85°C (derating after +70°C)
- Isolation Voltage: Input to output 1800 VDC
- Ripple and Noise: Approximately 60-96 mVp-p depending on model
- Dimensions: 16 mm x 15.24 mm x 12.7 mm (width x height x depth)
- Housing: Aluminum alloy, black anodized, epoxy potting
- Soldering: Wave soldering profile 260°C / 10 s maximum
- Certifications: UL 62368-1, IEC 62368-1, EN 55032 Class A, RoHS, Reach
Buy the Buy Traco Power TEL 10 Series 10 Watt Part Number TEL104815 Online
Enhance your industrial, instrumentation, or IT applications with the compact and highly efficient Traco Power TEL 10 Series DC/DC Converter. Designed in a durable DIP-16 metal case with an insulated base plate, this 10 Watt power module features a wide input voltage range from 9 V to 48 V, ensuring flexibility in various environments. Its high efficiency up to 88%, built-in EN 55032 class A filter, and automatic short-circuit protection make it ideal for space-constrained projects. Reliable, safe, and easy to integrate—order online today and upgrade your power systems effortlessly.
Order your Traco Power TEL 10 Series 10 Watt converter today and ensure your industrial electronics and instrumentation projects benefit from high efficiency and reliable power supply.
Frequently Asked Questions
Where can I buy TRACO POWER TEL104815?
You can click on the BUY or RFQ button to purchase TEL104815 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL104815?
You can download the TEL104815 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL104815?
TRACO POWER
