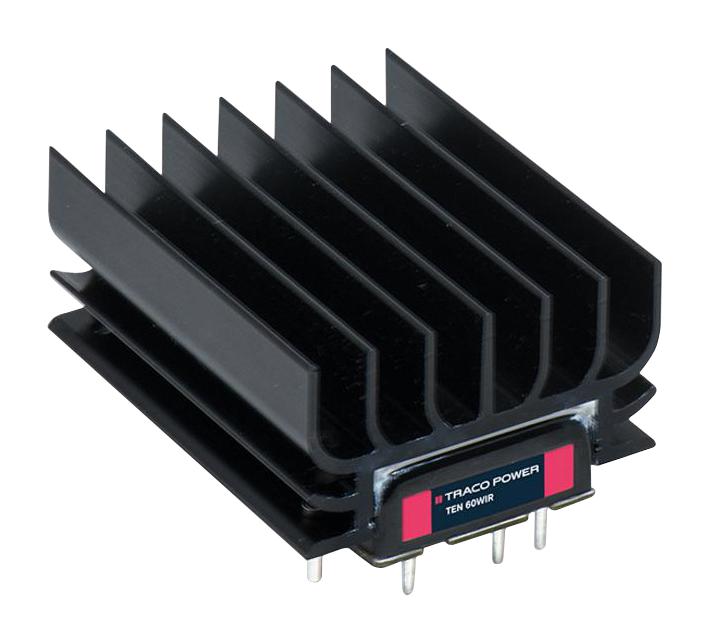

TRACO POWER TEN602411WIR Railway Power Module
The TEN 6OWIR series offers rugged 60 Watt DC/DC converters approved for railway applications, featuring a compact 2x1-inch package without heatsink. With a wide 4:1 input voltage range of 9-36 VDC, 18-75 VDC, or 36-160 VDC, these converters support operating temperatures from -40°C to +90°C and provide up to 92% efficiency. They include features like input/output isolation of 3000 VDC, adjustable output voltages, remote on/off, under-voltage lockout, and compliance with EN 50155, EN 61373, and EN 45545-2 fire safety standards, making them suitable for demanding transportation and industrial environments.
TRACO POWER TEN602411WIR Railway Power Module Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Power: 60 Watts
- Efficiency: Up to 92%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +90°C
- Case Size: 2" x 1" x 0.4"
- Temperature Coefficient: 0.02%/K max.
- Start-up Time: 30 ms typical
- Overvoltage Protection: 124-133% of Vout nom.
- Short Circuit Protection: Continuous, automatic recovery
- Remote On/Off: Pin controlled, 3.0 to 12 VDC On, 0 to 1.2 VDC Off
- Standards Compliance: EN 50155, EN 61373, EN 45545-2, IEC/EN 62368-1, UL 62368-1
- Vibration: MIL-STD-810F, EN 61373
- Cooling: Natural convection
- Input Surge Voltage: 50-200 VDC depending on model
- Dimensions: 50.8 mm x 25.4 mm x 10.2 mm
- Material: Copper housing, silicone potting
Buy the Traco Power TEN 602411WIR – Reliable Railway DC/DC Converter for Industrial Applications
Purchase the Traco Power TEN 602411WIR online today to ensure reliable power conversion for railway and industrial systems. Its rugged design, high efficiency of up to 92%, and wide input voltage range make it ideal for demanding transportation applications. Featuring comprehensive safety standards, excellent thermal performance, and remote control capability, this converter guarantees optimal operation in challenging environments. Secure your supply chain with this high-quality, railway-approved power module, engineered for durability, safety, and maximum efficiency in rugged industrial settings.
Get Traco Power TEN 602411WIR today—built for precision and long-lasting durability in rugged industrial environments.
