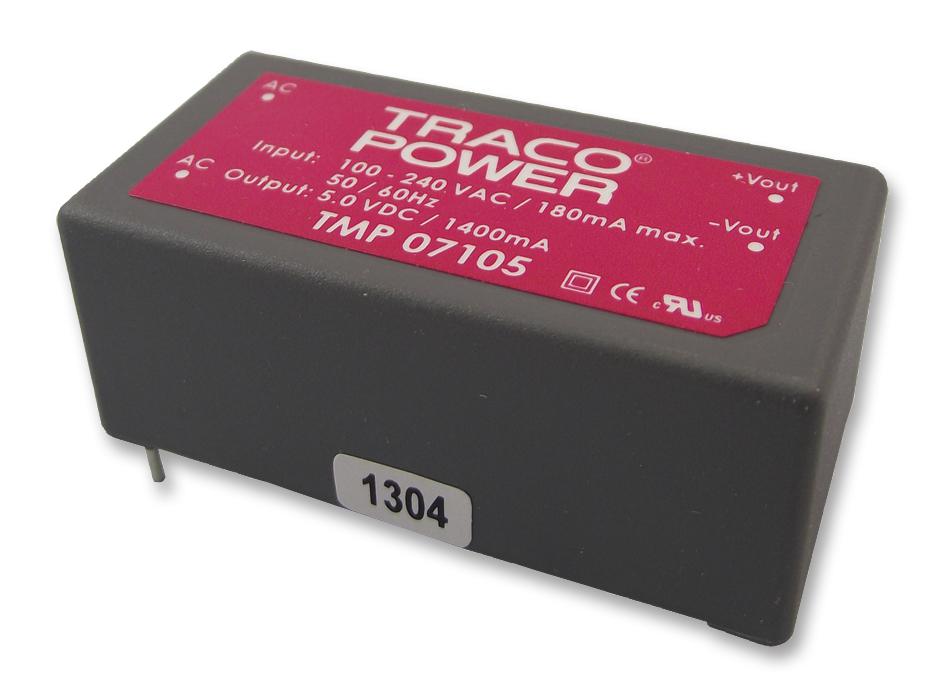

TRACO POWER TMP07105 power supply
The TMP 07 Series AC/DC switching power supply delivers 7 Watts of reliable power with a 5V output at 1400mA, ideal for compact electronic systems. Designed for indoor environments, it features UL 94V-0 flammability-rated plastic casing, and complies with IEC/EN60950-1 and UL60950-1 safety standards. The power supply operates efficiently within a temperature range of -25°C to +47°C, ensuring stable performance. Its wiring terminals support PCB mounting with solder pins or screw terminals, and it includes comprehensive safety and handling instructions for professional installation and maintenance purposes.
TRACO POWER TMP07105 power supply Specifications:
- Output Power: 7 Watts
- Output Voltage: 5Vdc
- Output Current: 1400mA
- Input Voltage Range: 85-264Vac / 47-440Hz
- Input Current: 0.16A typ. at 115VAC
- Operation Temperature Range: -25°C to +47°C max
- Case Material: Plastic resin + Fiberglas, UL 94V-0 flammability rating
- Mounting: PCB with solder pins or screw terminal, wires max 1.5mm²
- Derating: 3.75% per °C above +50°C
- Safety Certifications: UL, cUL, compliant with IEC/EN60950-1, UL60950-1
- Construction: Indoor professional use, safety instructions included
- Dimensions: Compact, suitable for industrial environments
- Design features include safety isolation, thermal management, and electrical robustness
Buy the Traco Power Series TMP 07 Power Supply: TMP07105
Order the Traco Power TMP07105 today to ensure your electronic devices receive stable, efficient power. With a 5V output at 1400mA, UL safety approval, and compact PCB mounting, it’s perfect for reliable indoor applications. Designed with durable UL 94V-0 casing and advanced safety features, this 7-watt power supply guarantees optimal thermal performance and electrical safety. Its easy installation process and compliance with international standards make it the ideal choice for professional electronics and industrial systems. Purchase now for peace of mind and consistent performance.
Buy Traco Power TMP07105 power supply now and experience unmatched reliability and performance in electronic power applications.
