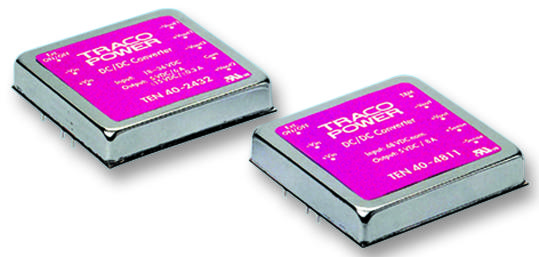

TRACO POWER TEN402423 DC/DC Converter Module
The TEN 40 series offers high-performance 40W DC/DC converter modules suitable for industrial and communication applications. Featuring a compact 51x51x10mm (2"x2"x0.4") design, these converters support wide 2:1 input voltage ranges, multiple output configurations, and operate efficiently from -40°C to +75°C. Built with a shielded metal case, they include remote On/Off, output regulation, overvoltage protection, and optional heatsinks. These RoHS-compliant, lead-free modules are ideal for space-constrained power architectures in diverse electronic equipment.
TRACO POWER TEN402423 DC/DC Converter Module Specifications:
- Casing material: copper, nickel plated
- Dimensions: 51 x 51 x 10 mm (2" x 2" x 0.4")
- Weight: 65 g (2.3 oz)
- Operating temperature: -40°C to +75°C
- Input voltage range: Wide 2:1 ratio (e.g., 9-36 V, 18-75 V, 36-150 V)
- Input current at no load: 200 mA (12 V), 100 mA (24 V), 50 mA (48 V)
- Input current at full load: 2680/1325/655 mA (3.3V/5V/12V models)
- Output voltages: 3.3 V / 5 V / 12 V / 15 V (various models)
- Output regulation: ±1% (main), ±5% (auxiliary)
- Ripple and noise: 50 mVpk-pk (3.3V/5V), 75-150 mVpk-pk (others)
- Isolation Voltage: 500 VDC input/output
- Switching frequency: 300 kHz (fixed)
- Protections: Over voltage, over load, short circuit, thermal shutdown
- Efficiency: up to 90%
- RoHS compliant, lead-free design
- Remote On/Off: 5-12 VDC or open circuit
Buy the Buy Traco Power TEN 40 Series Part Number TEN402423 Online
Order the Traco Power TEN 40 Series TEN402423 DC/DC Converter module online to experience reliable power conversion with high efficiency, wide input voltage range, and minimal space requirements. Suitable for industrial, communication, and distributed power systems, this 40W converter offers multiple outputs, overvoltage and short circuit protections, and operates efficiently across a broad temperature range. Its compact size and industry-standard footprint make installation seamless. Trust in Traco Power’s quality for durable, industrial-grade power solutions—buy now and enhance your electronic equipment's performance.
Get Traco Power TEN 40 Series TEN402423 today—built for precision and long-lasting durability in industrial electronic systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402423?
You can click on the BUY or RFQ button to purchase TEN402423 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402423?
You can download the TEN402423 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402423?
TRACO POWER
