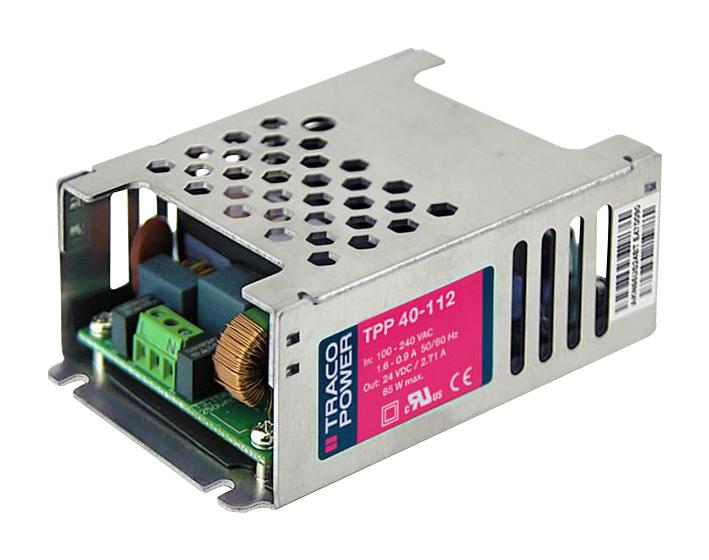

TRACO POWER TPP40221 Medical Power Supply
The TPP 40 Series is a reliable 40-watt medical power supply designed for medical devices and demanding safety applications. It features reinforced double I/O isolation per IEC/EN/ES 60601-1 3rd edition for 2 x MOPP up to 5000 meters altitude, low leakage current below 75 pA suitable for BF applications, high efficiency up to 92%, and a compact 2.44” x 3.0” package. It operates in temperatures from -40°C to +70°C, with protections including short circuit, overvoltage, and overcurrent. Certified for medical safety standards, it ensures high reliability and EMC compliance for industrial, domestic, and medical use.
TRACO POWER TPP40221 Medical Power Supply Specifications:
- Output Power: 40 W
- Input Voltage: 85 - 264 VAC / 120 - 370 VDC
- Input Frequency: 50 - 63 Hz
- Output Voltage: 12V, 15V, 24V, +12V, +5V, -12V, -15V at various models
- Efficiency: Up to 92%
- Operating Temperature Range: -40°C to +70°C (derating at 85°C)
- Leakage Current: <75 pA
- Protection: Short circuit, Overvoltage (125-140%), Overcurrent (115-180%)
- Isolation Test Voltage: 5657 VDC input to output
- Vibration Resistance: IEC 60068-2-6
- Housing Material: Aluminum
- Dimensions: Approximately 2.44 x 3.0 inches
- Mounting: Screw terminal connection
- Altitude Operation: Up to 5000 meters
- Certification: IEC 60601-1, IEC 60601-1-2, EN 55011, FCC Part 18
- Pollution Degree: PD 2
- Insulation: Reinforced
- Certifications: Medical safety standards, EMC Conformance, RoHS and Reach compliant
Buy the Traco Power TPP40221 – Reliable Medical Power Supply for Industrial Applications
Experience high reliability and safety with the Traco Power TPP40221, a 40-watt medical power supply designed for demanding applications. Certified to IEC 60601-1 for 2 x MOPP, it offers reinforced insulation, low leakage current below 75 pA, and an efficiency of up to 92%. Its compact size and wide temperature range make it ideal for medical devices, industrial, and domestic use. Equipped with short circuit, overvoltage, and overcurrent protections, it ensures safety, durability, and compliance with strict standards. Order online now for reliable power delivery.
Get Traco Power TPP40221 today—built for medical precision, high efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TPP40221?
You can click on the BUY or RFQ button to purchase TPP40221 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP40221?
You can download the TPP40221 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP40221?
TRACO POWER
