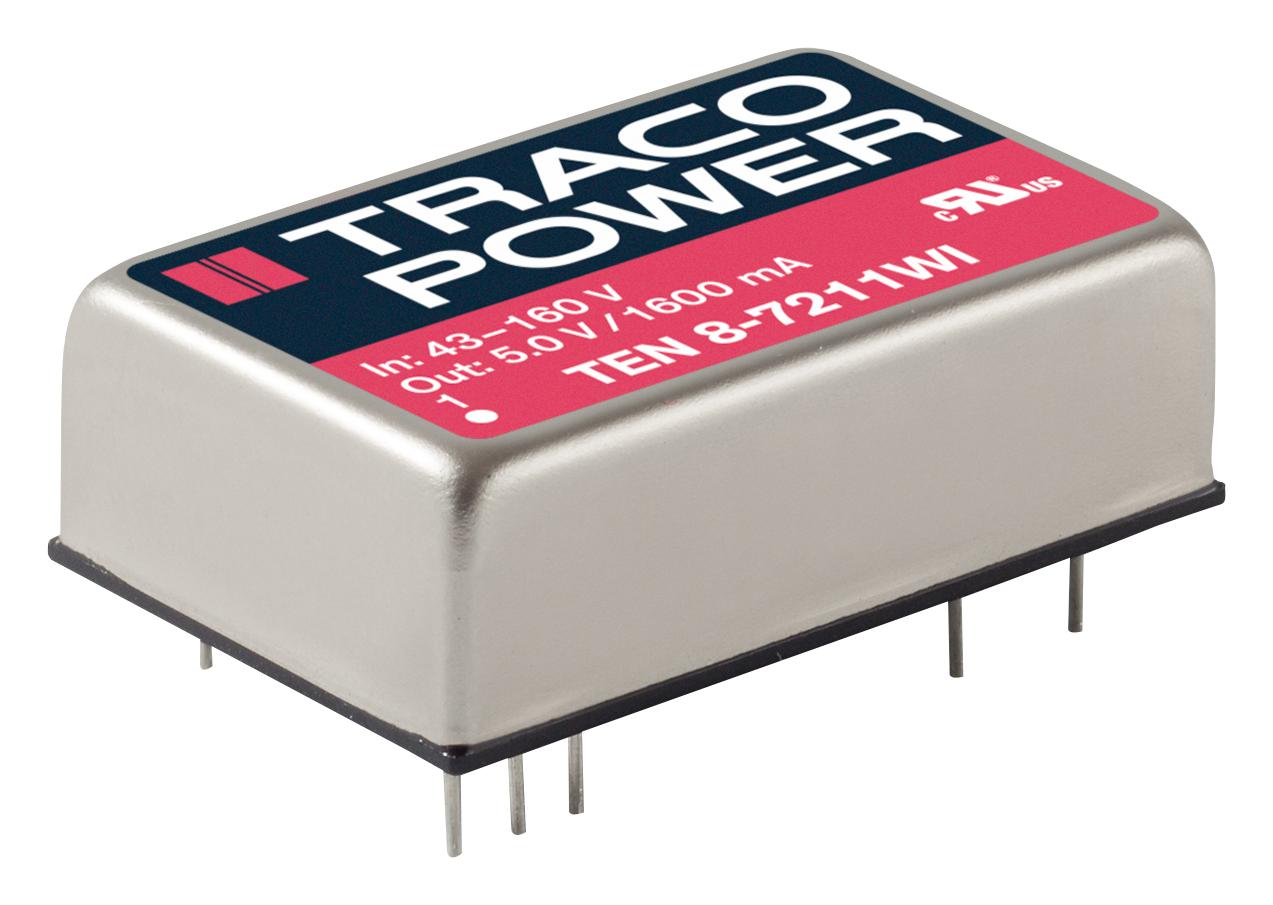

TRACO POWER TEN87211WI DC/DC Converter Module
The TEN 8WI series is a high-performance 8 Watt DC/DC converter module designed for demanding applications such as railway, transportation, wireless networks, telecom, and industrial control systems. Featuring an ultra-wide 4:1 input voltage range up to 160 VDC, it offers high efficiency up to 88%, remote On/Off, under voltage lockout, over voltage and short circuit protection. Its rugged, shielded metal case with insulated base plate ensures reliability in harsh environments, meeting EN 50155 approval and vibration resistance standards. The converter operates from -40°C to +85°C, making it ideal for industrial and transportation applications requiring durability and high performance.
TRACO POWER TEN87211WI DC/DC Converter Module Specifications:
- Input Voltage Range: 9-36V, 18-75V, 43-160V DC
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, 48V, 110V, 18-75V load dependent
- Max Output Current: 2,400mA, 1,600mA, 666mA, 533mA, 800mA, 333mA, 267mA
- Efficiency: up to 88%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500V DC input/output
- Switching Frequency: 300kHz typical
- Dimensions: Copper case, weight 18g, size approximately 19.1 x 11.5 x 8.8 mm
- Protection: Over voltage, under voltage, short circuit, over load
- Certifications: EN 50155, UL/cUL 60950-1, IEC/EN 60950-1
- Ripple & Noise: 50-75mVp-p depending on input voltage
- Remote On/Off: 0-12VDC or open circuit for on, 0-1.2VDC or short circuit for off
- Power Derating: 3%/K above +70°C
Buy the Buy TracoPower DC/DC Converter Part Number TEN87211WI Online
Purchase the TracoPower TEN87211WI high-efficiency 8-watt DC/DC converter online to upgrade your industrial, transportation, or communication systems. This robust module features an ultra-wide input voltage range from 9V to 160V DC, providing stable power supply in harsh environments. It offers high efficiency up to 88%, robust protection features including over voltage, under voltage, and short circuit protection, plus EN 50155 approval. Its rugged, shielded metal case with insulated base plate ensures durability and reliability for critical applications. Simplify procurement and ensure your systems operate optimally by buying online today.
Buy TracoPower TEN87211WI now and experience unmatched reliability and high efficiency for demanding industrial and transportation applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEN87211WI?
You can click on the BUY or RFQ button to purchase TEN87211WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN87211WI?
You can download the TEN87211WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN87211WI?
TRACO POWER
