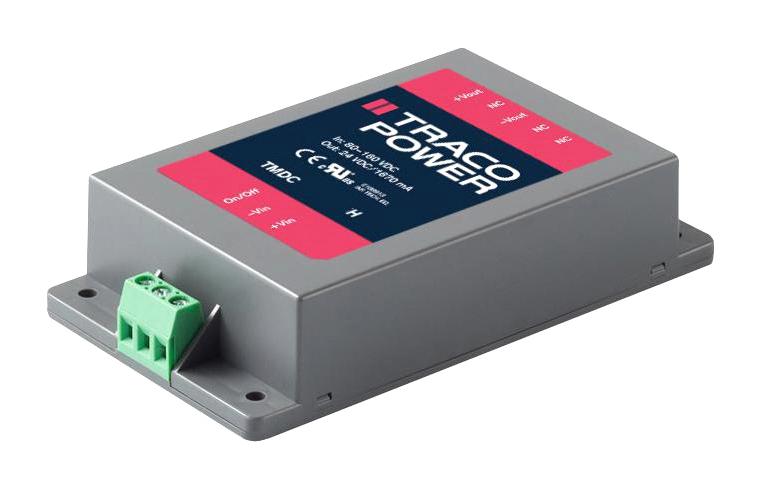

TRACO POWER TMDC607212H Industrial DC/DC Converter
The TMDC 60H series by Traco Power offers fully encapsulated 60-watt industrial DC/DC converters designed for harsh environments. They feature a high 2:1 input voltage range from 80-160 VDC, reinforced 3000 VAC isolation, and fully regulated outputs. These modules support operating temperatures from -40°C to +75°C without derating, include internal EMI filters compliant with EN 55032 and EN 55035 standards, and come with safety approvals like UL 62368-1. Ideal for industrial, 110 VDC battery applications, they provide reliable, isolated, and safe power solutions with DC-OK and remote on/off functionalities.
TRACO POWER TMDC607212H Industrial DC/DC Converter Specifications:
- Input Voltage Range: 80-160 VDC
- Output Power: 60 Watts
- Output Voltages: 5.1 V, 12 V, 15 V, 24 V, -12 V, -15 V, -24 V
- Input Current at Full Load: 620 mA
- Efficiency: up to 89%
- Isolation Voltage: 3000 VAC
- Operating Temperature: -40°C to +75°C without derating
- Protection: Overload, undervoltage, short circuit
- Safety Certifications: UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55032 (Class A), EN 55035
- Housing: Fully encapsulated plastic
- Mechanical: Screw terminal, 300 g weight
- Start-up Time: 30-60 ms
- Transient Response: 5% deviation, 250 μs response time
- Remote Control: 3.5-12 VDC on/off
- Insulation: Reinforced 3000 VAC
- Reliability: MTBF 218,000 hours
Buy the Traco Power Series TMDC DC/DC Converter: TMDC 60H
Purchase the Traco Power TMDC 60H series industrial DC/DC converter online today and enjoy robust power solutions designed for harsh conditions. This fully encapsulated module provides a wide input voltage range of 80-160 VDC, reinforced isolation of 3000 VAC, and high efficiency up to 89%. Perfect for applications requiring safe, isolated power in industrial environments with operating temperatures from -40°C to +75°C without derating. Featuring safety approvals, EMI filters, and remote on/off, it ensures dependable performance and peace of mind in demanding applications.
Buy Traco Power TMDC 60H series 60-watt industrial DC/DC converter now and experience unmatched reliability and performance in harsh environments.
