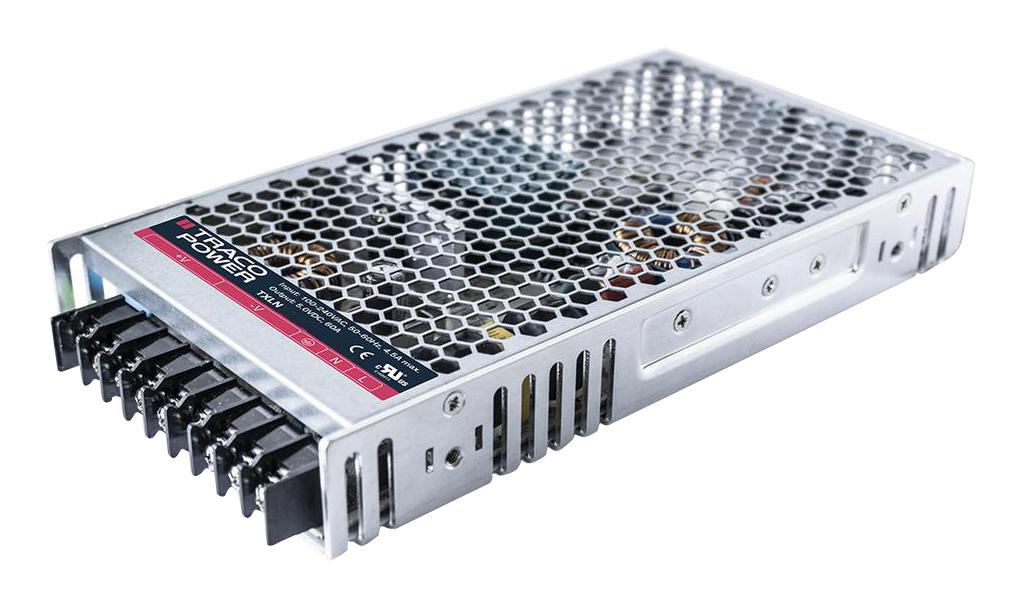

TRACO POWER TXLN200112 Industrial Power Supply
The TXLN 200 series is a family of compact, energetically efficient power supplies housed in a durable aluminum casing. Designed for cost-sensitive applications, these units feature a low-profile metal case and screw terminal connections for easy installation. They offer a universal input range of 85-264VAC and operate with high efficiency up to 86%. The power supplies are convection cooled, require no fans, and meet European EMC standards along with the Low Voltage Directive (LVD). They include protections against short circuits, overvoltage, and overloads. Certified to IEC/EN/UL 62368-1 safety standards, they are suitable for industrial and professional use. Operating temperatures range from -30°C to +70°C, with switching frequencies between 90KHz and 110KHz (PWM). The units are rated for pollution degree 2, overvoltage category II, and demonstrate compliance with EN 61000-3-2 emissions standards. The package is covered by a 3-year warranty, and the units are prepared for connection to PE (Protection Earth).
TRACO POWER TXLN200112 Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC, 120-375 VDC (designed for, no certification)
- Input Frequency: 50-63 Hz
- Output Power: 200W
- Output Voltage: 5VDC, 12VDC, 24VDC, 48VDC options
- Output Current: 45mA (5V), 16.7A (12V), 8.4A (24V), 4.2A (48V)
- Efficiency: Up to 89%
- Ripple and Noise: 150mVp-p (5V), 150mVp-p (12V), 150mVp-p (24V), 240mVp-p (48V)
- Operating Temperature: -30°C to +70°C, derated above 50°C
- Protection: Short circuit, overvoltage (115-140% Vout), overload (105-150%)
- Safety Standards: IEC/EN UL 62368-1, EN 61000-6-3, EN 61000-6-1
- EMC Compliance: EN 55032 class B, EN 61000-3-2
- Isolation Voltage: 3000 VAC (input to output), 1800 VAC (input to case)
- Housing Material: Aluminum
- Connection Type: Screw terminals
- Dimensions: Approximately 295 mm x 32.5 mm x 20 mm
- Weight: 770g
- Cooling: Natural convection
- Pollution Degree: 2
- Overvoltage Category: II
Buy the Buy Traco Power TXLN 200 Series Part Number TXLN200112 Online
Secure your industrial power needs with the Traco Power TXLN 200 Series. Featuring universal input 85-264VAC, up to 86% efficiency, and robust protections, these compact units are ideal for demanding applications. Easy to install with screw terminal connections and convection cooled, they operate reliably in temperatures from -30°C to 70°C. Certified to IEC/EN/UL 62368-1 safety standards, offering peace of mind. Purchase online today for quality, efficiency, and durability in your equipment.
Order your Traco Power TXLN 200 Series 200 Watt power supply today and ensure reliable, energy-efficient performance for your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN200112?
You can click on the BUY or RFQ button to purchase TXLN200112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN200112?
You can download the TXLN200112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN200112?
TRACO POWER
