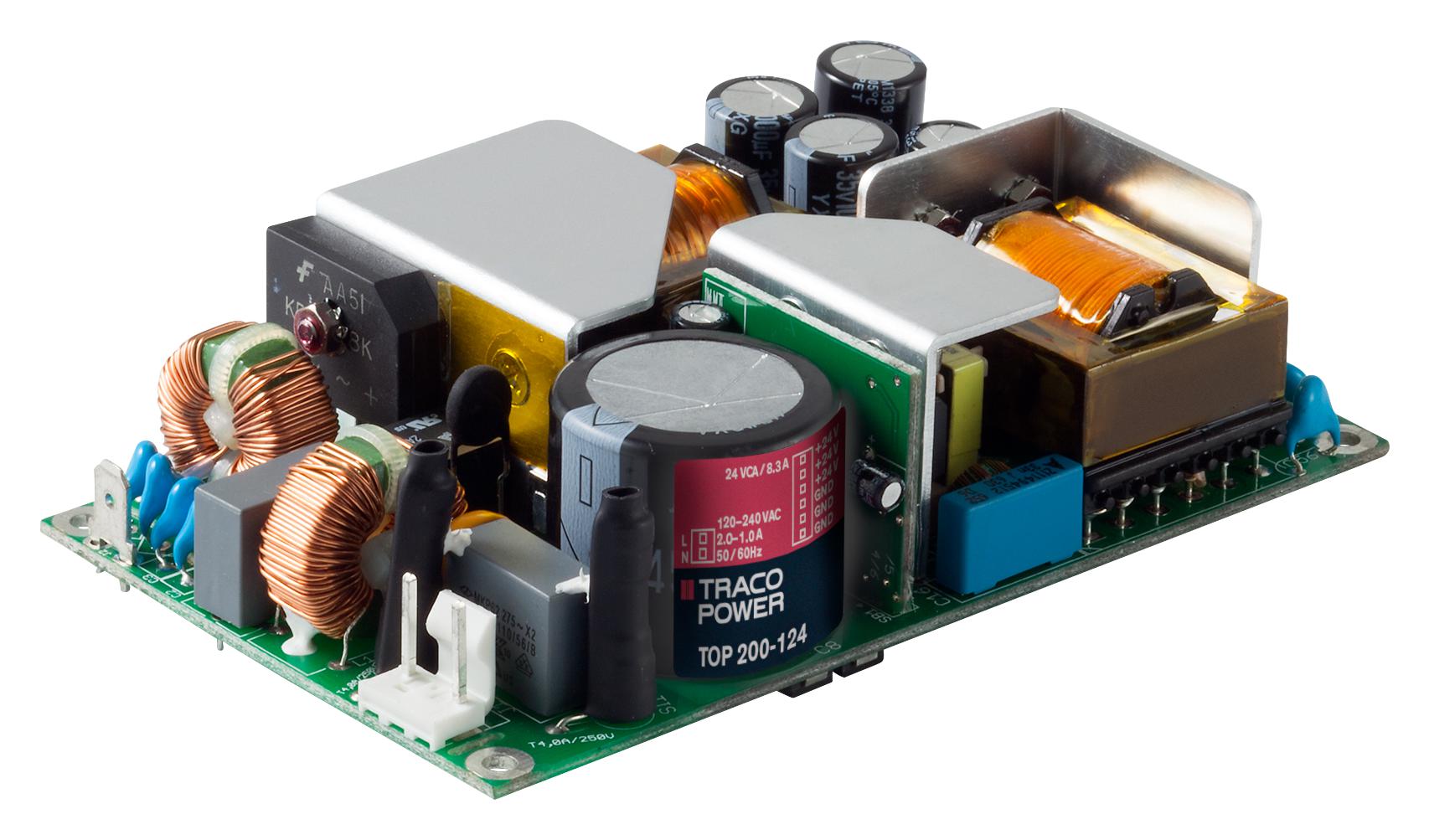

TRACO POWER TOP200112 Industrial Power Supply
The TOP 200 Series power supplies deliver up to 200 W output power within a compact 3.0” x 5.0” footprint, ideal for industrial and IT applications. Featuring high efficiency over 90%, they operate from -25°C to +70°C, and require no dedicated cooling fan. Their universal input range (85-264 VAC) and compliance with international safety and EMC standards make them suitable for global markets. Designed with industrial-grade components and efficient thermal management, these power supplies deliver reliable, space-saving power for rugged industrial environments and cost-sensitive commercial electronics.
TRACO POWER TOP200112 Industrial Power Supply Specifications:
- Power Output: 200 W
- Output Voltage: 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Output Current: 16A, 13A, 83A, 42A
- Input Voltage Range: 85 - 264 VAC (universal input)
- Frequency Range: 47 - 63Hz
- Efficiency: up to 95%
- Operating Temperature: -25°C to +70°C
- Protection Class: I and II
- Isolation Voltage: Input/Output 3000 VAC
- Dimension: 3.0” x 5.0” (76.2 x 127 mm)
- Weight: 315 g
- Switching Frequency: 100 kHz
- Ripple & Noise: <120 mVp-p
- Hold-up Time: 10 ms
- Safety Certifications: UL 60950-1, CSA
- EMC Standards: EN 55022, IEC/EN 61000-3-2
- Environmental Specs: -25°C to +70°C, non-condensing humidity
- Vibration & Shock Resistance: IEC 60068-2-6, IEC 60068-2:27
Buy the TRACOPOWER TOP200 – Reliable Power Supplies for Industrial Applications
Purchase the TRACOPOWER TOP200 series power supplies online today and enjoy a space-saving, highly efficient, and reliable power solution. These power supplies are designed to meet rigorous industrial standards, offering up to 200 W output with universal input compatibility and a broad operating temperature range. Ideal for industrial automation, IT systems, and cost-sensitive electronics, they ensure continuous operation with excellent thermal management, compliance with worldwide standards, and a 3-year warranty. Secure your high-performance power supply now and optimize your system's efficiency and reliability.
Buy TRACOPOWER TOP200 series power supplies now and experience unmatched reliability and high efficiency for industrial and commercial use.
Frequently Asked Questions
Where can I buy TRACO POWER TOP200112?
You can click on the BUY or RFQ button to purchase TOP200112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TOP200112?
You can download the TOP200112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TOP200112?
TRACO POWER
