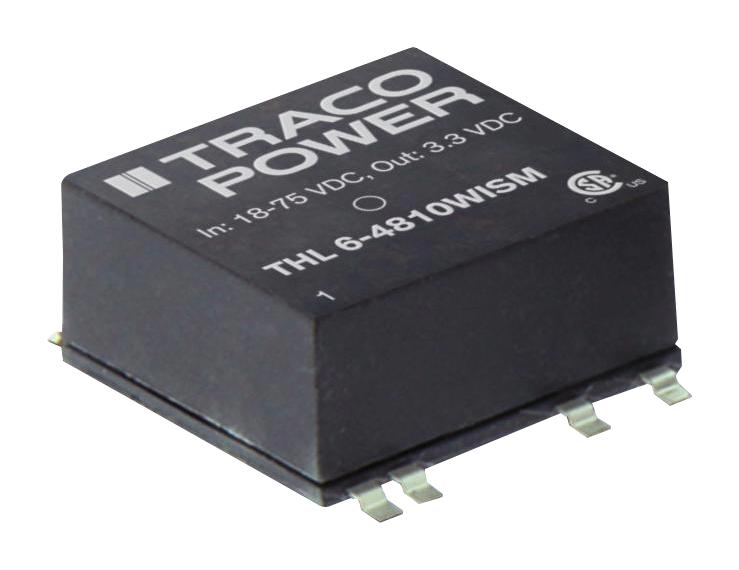

TRACO POWER THL64822WISM DC/DC Converter
The THL 6WISM series from TracoPower consists of 6W single and dual output DC/DC converters in SMD package. These compact modules feature fully regulated outputs and an ultra-wide 4:1 input voltage range, typically 24VDC or 48VDC. They offer multiple output voltages including 3.3VDC, 5VDC, 12VDC, 15VDC, 24VDC, and bipolar voltages such as ±5VDC, ±12VDC, ±15VDC, with maximum currents ranging from 200mA to 1450mA. The converters provide up to 83% efficiency at a switching frequency of 330kHz, with internal filtering meeting EN55022 Class A standards without external components. Features include remote on/off, short circuit protection, and 1500VDC I/O isolation. They comply with UL/cUL 60950-1 and IEC/EN 60950-1 safety standards, are suitable for data, telecom, instrumentation, and industrial applications, and operate reliably within -40°C to +75°C. Dimensions are 20.3mm x 10.5mm x 22mm.
TRACO POWER THL64822WISM DC/DC Converter Specifications:
- Input Voltage Range: 3.3VDC to 36VDC and 18-75VDC models
- Output Voltage Options: 3.3VDC, 5VDC, 12VDC, 15VDC, 24VDC, ±5VDC, ±12VDC, ±15VDC
- Maximum Output Current: 1450mA for 3.3V and 5V models, 500mA to 250mA for others
- Efficiency: Up to 83%
- Switching Frequency: 330 kHz
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +75°C
- Dimensions: 20.3mm x 10.5mm x 22mm
- Input Current (no load): 20–30 mA depending on model
- Input Surge Voltage: 50–100 V max
- Ripple & Noise: 100mVp-p max at 20 MHz bandwidth
- Short Circuit Protection: Yes, automatic recovery
- Certifications: UL, cUL, IEC 60950-1, RoHS, Reach
- Environmental: Non-condensing humidity 95%, altitude up to 51,000m
Buy the TracoPower THL 6WISM – Reliable DC/DC Converter for Industrial Applications
Purchase the TracoPower THL 6WISM series DC/DC converters online today and benefit from their compact size, wide input voltage range, fully regulated outputs, and high efficiency. Ideal for industrial, telecom, and instrumentation applications, these converters feature internal filters meeting EN55022 Class A standards without external components, remote on/off capability, and built-in short circuit protection. With a robust design operating from -40°C to +75°C and UL/IEC safety standards compliance, they ensure reliable, long-term performance in critical environments. Buy now for dependable power conversion.
Get TracoPower THL 6WISM today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER THL64822WISM?
You can click on the BUY or RFQ button to purchase THL64822WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL64822WISM?
You can download the THL64822WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL64822WISM?
TRACO POWER
