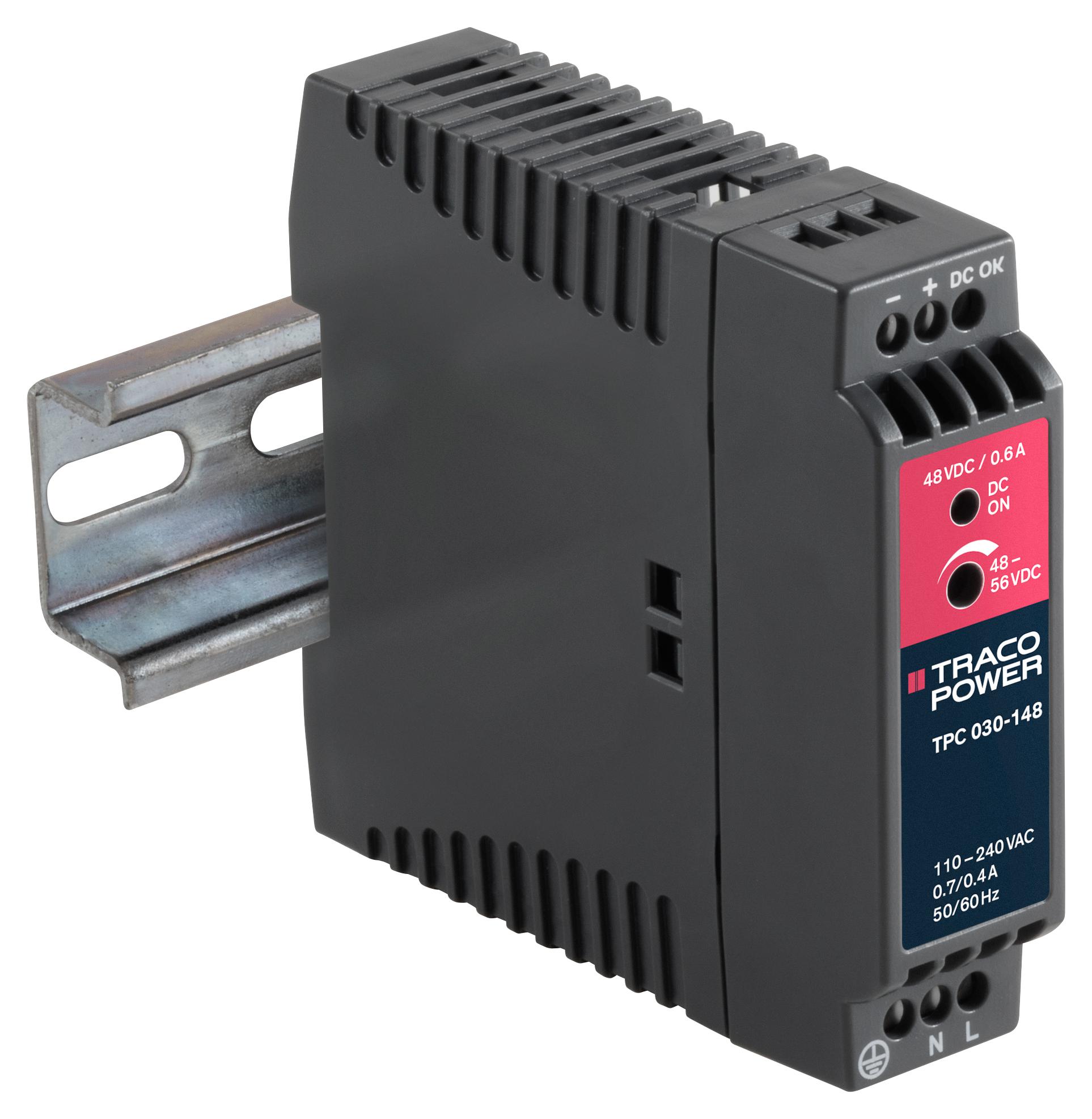

TRACO POWER TPC030148 Industrial Power Supply
The TPC power supplies from Traco Power are compact, highly efficient DIN-rail units suitable for industrial, office, and residential applications, offering power outputs from 30 to 120W. They feature universal input voltage (85-264VAC or 90-375VDC), adjustable output voltages, low power consumption (<0.3W for models up to 55W, <0.5W for higher wattage), and excellent protection features including overload, short-circuit, and overvoltage protection. Designed for reliable operation with DIN-rail snap-on mounting, wall brackets, and optional redundancy modules, these supplies meet stringent safety and EMC standards for industrial environments.
TRACO POWER TPC030148 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264 VAC, 47-63 Hz / 90-375 VDC
- Output Power: 30W (model TPC030148: 48 VDC / 48-56 VDC, 0.6A)
- Output Voltage Range: 5.0-6.0 VDC (adjustable), 12-15 VDC, 24-28.8 VDC, 48-56 VDC
- Efficiency: Up to 87% depending on model
- Ripple & Noise: max. 100 mVpk-pk
- Protection: Overload, short-circuit, overvoltage
- Ambient Temperature: Operating 25°C to +70°C, Storage up to +85°C
- Mounting: DIN-rail snap-on, optional wall mounting bracket
- Dimensions: Vary by model, approx. 25.5 x 9 x 9.65 cm for TPC 030148
- Safety & EMC: UL, CB, CSA certifications; EN 61000-6-3/6-2 compliance
- Enclosure Material: UL 94V-0 rated Makrolon 2405
Buy the Traco Power TPC030148 – Reliable Power Supply for Industrial Applications
Choose the Traco Power TPC030148 power supply for your industrial, office, or residential project. These compact, high-efficiency units offer adjustable output voltage, universal input, and multiple protection features. Designed for DIN-rail mounting with optional wall brackets, they deliver reliable power with exceptional efficiency and safety standards, making them ideal for demanding environments. Order online today to secure a trusted, durable power solution that ensures your systems operate smoothly and reliably for years to come.
Order your Traco Power TPC030148 series power supply today and ensure your industrial projects benefit from dependable, high-quality power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TPC030148?
You can click on the BUY or RFQ button to purchase TPC030148 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPC030148?
You can download the TPC030148 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPC030148?
TRACO POWER
