TRACO POWER TPP15112J Medical Power Supply
The TPP 15-J Series 15 Watt medical power supplies are encapsulated units designed for healthcare applications, complying with IEC/EN/ES 60601-1 3rd edition for 2 x MOPP. They feature high efficiency up to 88.5%, low leakage current below 75 pA, and operate at altitudes up to 5000 m. The compact size of 1.1” x 2.8” makes them suitable for medical devices requiring reinforced insulation, low power consumption, and EMC compliance, with a wide temperature range from -40°C to +70°C, ensuring reliability in demanding environments.
TRACO POWER TPP15112J Medical Power Supply Specifications:
- Power: 15 Watts
- Output Voltage Range: 3.3 VDC to 48 VDC (adjustable within specified limits)
- Maximum Output Current: 4,000 mA at 3.3 V, up to 313 mA at 48 V
- Efficiency: Up to 88.5%
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 47 — 63 Hz
- Protection Class: Class II with reinforced insulation
- Isolation Voltage: 5,657 VDC input to output, 21,121 VDC input to case/PE
- Operating Temperature: -40°C to +70°C (up to 85°C at 50% load with derating)
- Operating Altitude: Up to 5000 meters
- Leakage Current: Less than 75 μA
- Dimensions: 1.1 x 2.8 inches
- Safety Standards: IEC 60601-1, IEC 62368-1, UL 62368-1
- EMC Compliance: IEC 60601-1-2 edition 4, FCC Part 15, B
- Vibration and Mechanical Robustness: IEC 60068-2-6, IEC 60068-2-27

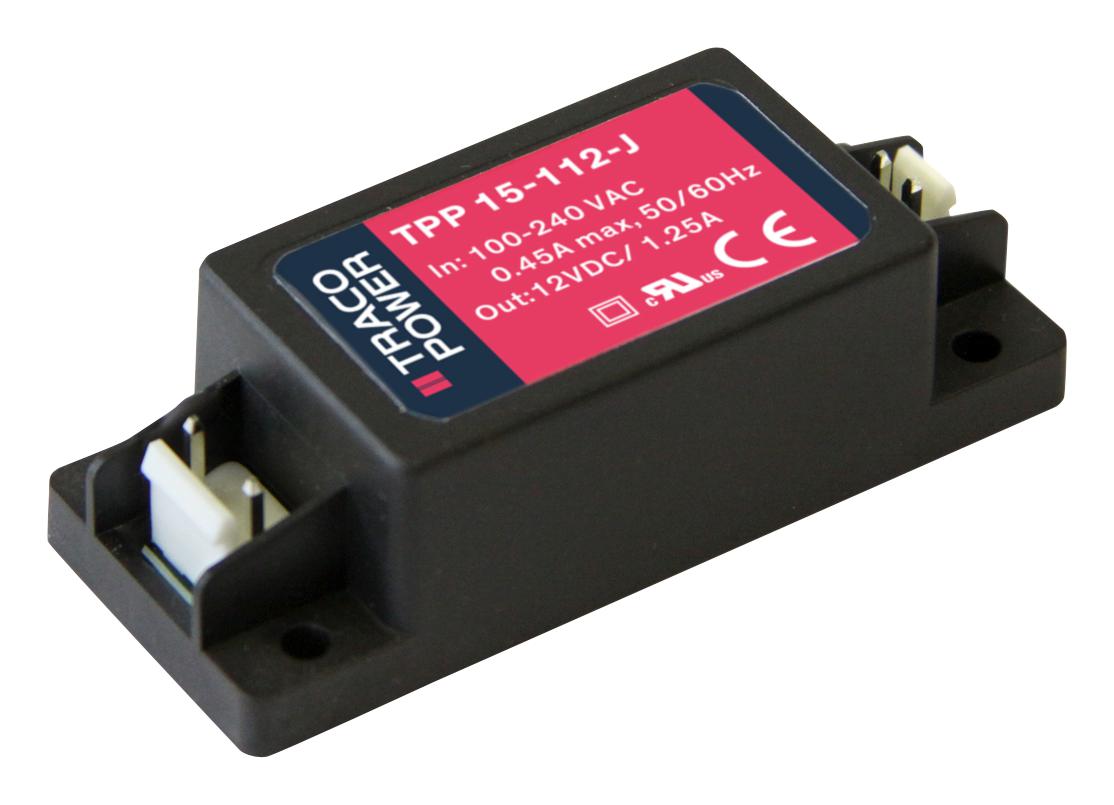

Buy the Traco Series TPP 15-J Power Supply: TPP15112J
Purchase the Traco Power TPP 15-J Series 15 Watt medical power supply online today to ensure your healthcare devices operate reliably and safely. Featuring high efficiency up to 88.5%, very low leakage current, and IEC 60601-1 compliance, this compact, encapsulated power supply is suitable for demanding medical environments. Its wide temperature and altitude ratings, reinforced insulation, and EMC standards make it ideal for various healthcare applications. Order now to benefit from fast delivery and excellent technical support, ensuring your medical systems remain compliant and operational.
Buy Traco TPP15112J now and experience unmatched reliability and performance in medical device power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TPP15112J?
You can click on the BUY or RFQ button to purchase TPP15112J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP15112J?
You can download the TPP15112J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP15112J?
TRACO POWER
