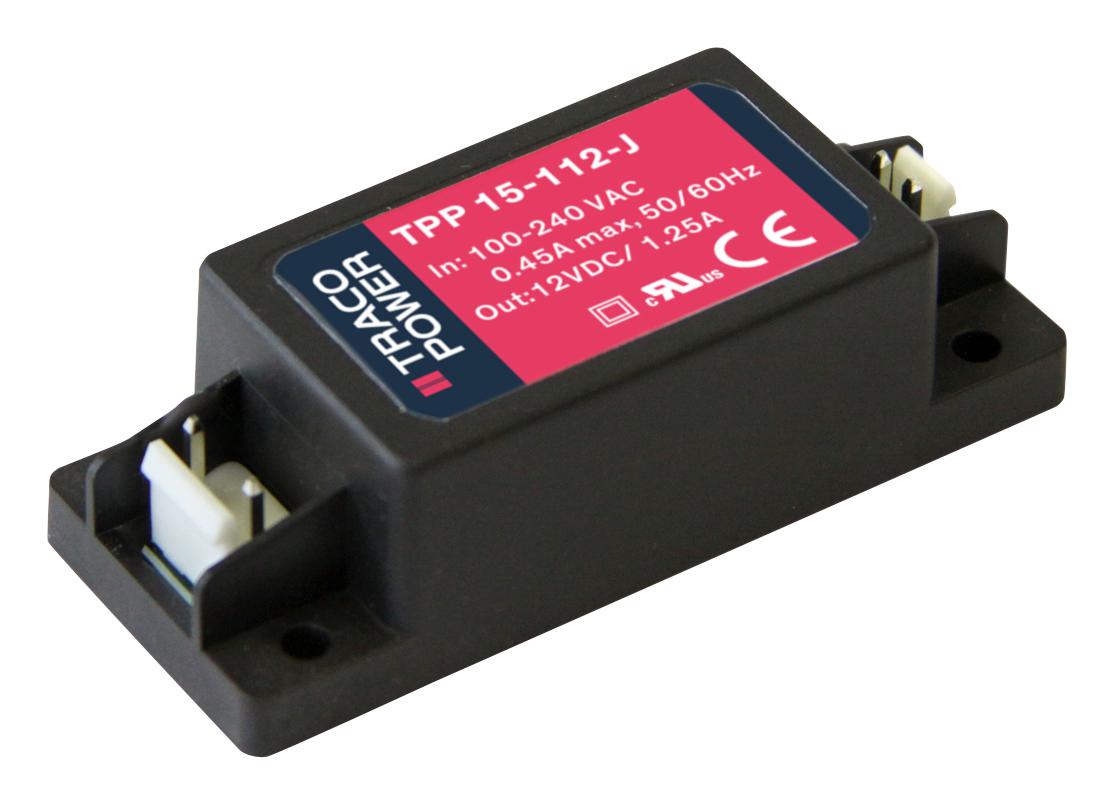

TRACO POWER TPP15148J medical power supply
The TPP 15-J Series is a compact, 15-watt medical power supply designed with high efficiency up to 89%, low leakage current below 75 pA, and reinforced insulation for BF applications. It complies with IEC 60601-1 3rd edition and is suitable for medical, healthcare, and industrial environments. The power supply operates in temperatures from -40°C to +70°C, up to 5000 m altitude, with a universal input voltage range of 85-264 VAC and 120-370 VDC. Features include low power consumption, medical EMC standards, and a 5-year warranty. Suitable for applications requiring high safety and reliability.
TRACO POWER TPP15148J medical power supply Specifications:
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 47 - 63 Hz
- Output Power: 15 Watts
- Output Voltage Range: 13.5 - 16.5 VDC (adjustable) for 15V model
- Output Current: 1000 mA (typ.)
- Efficiency: Up to 89%
- Dimensions: 71.7 mm x 58 mm x 28.9 mm (L x W x H)
- Operating Temperature: -40°C to +70°C (up to 85°C derating at 50%)
- Isolation Voltage: 5,657 VDC input to output, 21,121 VDC input to case
- Leakage Current: <75 pA at rated voltage
- Certifications: IEC 60601-1, IEC 62368-1, UL 62368-1
- Protection Class: II reinforced insulation
- Altitude: Operating up to 5000 meters
- Vibration & Shock: Meets IEC standards
- Power Consumption at No Load: 75 mW
- Hold-up Time: 8 ms at 115 VAC
- Ripple & Noise: 40-70 mVp-p depending on model
- Cooling: Natural convection
- Warranty: 5 years
Buy the Buy Traco Power TPP 15-J Series Part Number TPP15148J Online
Experience reliable power with the Traco Power TPP 15-J Series medical power supply, offering 15 watts of high efficiency, low leakage, and reinforced insulation for safety-critical applications. Perfect for healthcare devices and industrial systems, this compact unit operates over a wide temperature range from -40°C to +70°C and across altitudes up to 5000 meters. Its compliance with IEC 60601-1 and IEC 62368-1 standards guarantees safety and EMC performance. Buy online now to ensure your medical equipment runs safely and efficiently with a 5-year warranty.
Get Traco Power TPP 15-J Series TPP15148J today—built for precision, high efficiency, and long-lasting durability in medical applications.
Frequently Asked Questions
Where can I buy TRACO POWER TPP15148J?
You can click on the BUY or RFQ button to purchase TPP15148J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP15148J?
You can download the TPP15148J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP15148J?
TRACO POWER
