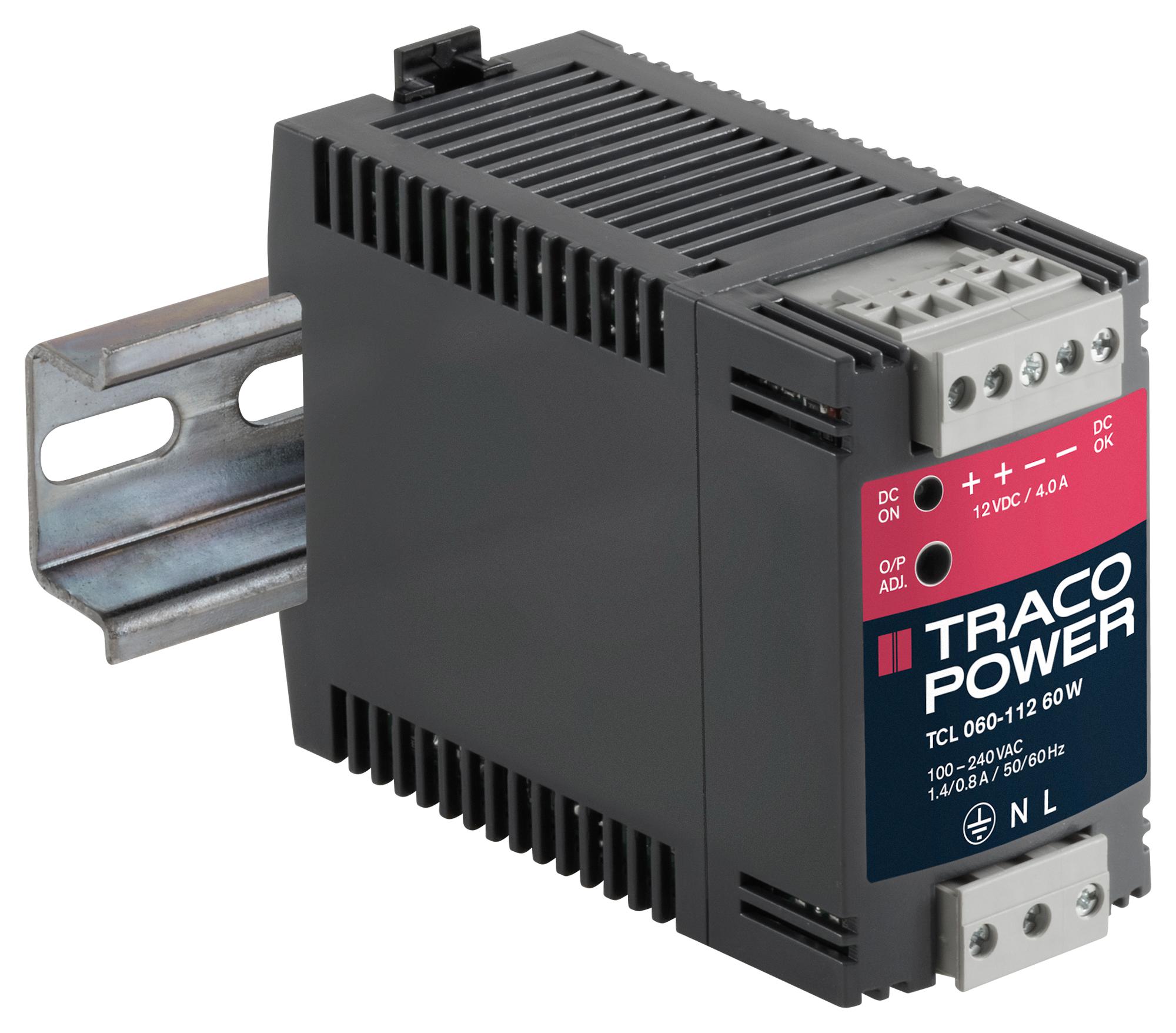

TRACO POWER TCL060112 Industrial Power Supply
The TCL 060-112 is a compact industrial power supply delivering 60W at 12V DC and 4A. Encased in a robust plastic housing, it features flexible connections via spring clamp or detachable screw terminal block and can be easily mounted on DIN rails. This power supply offers excellent value with tightly regulated output voltage, low ripple and noise, and high immunity to electrical disturbances. It is suitable for industrial applications such as process control and machine tools, especially in environments with challenging electrical conditions. Key features include universal input voltage (85-264VAC), adjustable output voltage, Power OK signal, overload and short-circuit protection, optional parallel operation, and compatibility with redundancy modules. It can also be wall-mounted for versatile installation.
TRACO POWER TCL060112 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264VAC
- Output Power: 60W
- Output Voltage: 12V DC (adjustable 12.0 - 15.0 VDC)
- Maximum Output Current: 4A
- Efficiency: 86% typ.
- Ripple and Noise: <50 mV pk-pk
- Voltage Regulation: 0.5% max
- Overload and Short Circuit Protection: Yes
- Protection: Overvoltage <24V, Overtemperature shut-down
- Isolation Voltage: 1500 VDC (Input/Output)
- Protection Class: IP20
- Enclosure Material: UL 94V-0 plastic
- Temperature Range: Operating 0°C to +70°C, Storage -25°C to +85°C
- Mounting: DIN-rail snap-on, wall bracket included
- Dimensions: (approx.) 115 x 70 x 35 mm
Buy the TRACOPOWER TCL060112 – Reliable 12V Power Supply for Industrial Applications
Enhance your industrial setup with the TRACOPOWER TCL060112 power supply, offering 60W at 12V DC. Its compact design, adjustable output, low ripple, and overload protection ensure stable operation in demanding environments. Ideal for process control, automation, and factory equipment, it features easy DIN-rail mounting, optional wall mount, and robust electrical safety standards. Invest in this reliable power source today to ensure uninterrupted performance and efficient operation in your industrial processes.
Buy TRACOPOWER TCL060112 now and experience unmatched reliability, flexible installation options, and stable power delivery for your industrial needs.
