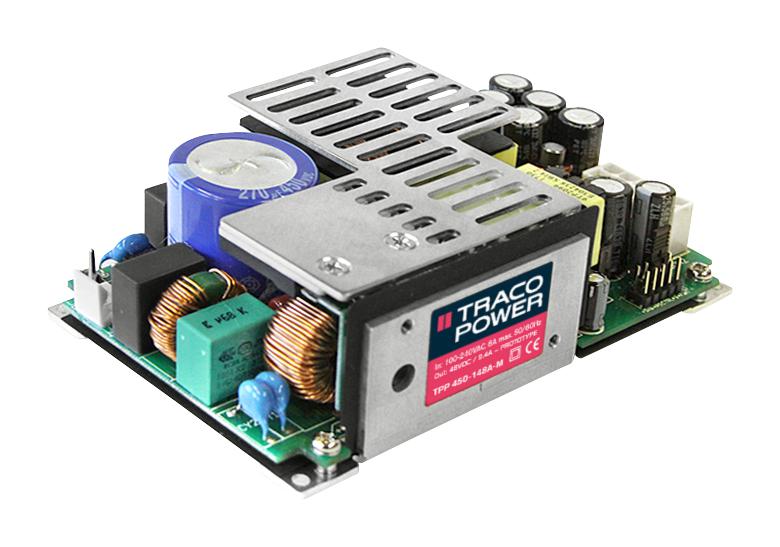

TRACO POWER TPP450112AM Medical Power Supply
The TPP 450A Series provides 450 Watt high-efficiency medical power supplies in a compact 3" x 5" open-frame design, suitable for demanding medical environments. It features optional forced air cooling or natural convection, with up to 94% efficiency, allowing power outputs of 36V, 48V, and other configurations. Certified for IEC/EN/ES 60601-1 safety standards and EMC compliance, it offers reinforced isolation, low leakage current, and wide input voltage range. It supports BF applications with low earth leakage and includes features like remote On/Off, Power Good signals, and variable fan control, ideal for medical devices requiring space-saving and reliable power solutions.
TRACO POWER TPP450112AM Medical Power Supply Specifications:
- Input Voltage Range: 85-264 VAC, 120-370 VDC
- Output Power: 450 Watt
- Output Voltage Options: 36 VDC, 48 VDC, 15 VDC, 24 VDC, 42 VDC, 53 VDC (on demand)
- Output Current: up to 208A (36V), 94A (48V), and others specified
- Efficiency: up to 94%
- Isolation Voltage: 4000 VAC (input to output), 2500 VAC (input to ground)
- Dimensions: 3" x 5" x 1.6" (76 x 127 x 40 mm)
- Operating Temperature: -40°C to +85°C
- Altitude: Up to 5000m
- Protection: Overvoltage (110-135%), Overload (115-150%), Short circuit (automatic recovery), Over temperature latch-out
- EMC Standards: IEC/EN 60601-1-2, EN 55032, EN 55024
- Leakage Current: Max 100 pA
- Power Factor: Min 0.95
- Additional Features: Remote On/Off, Power Good Signal, Variable Fan Speed, Standby 5V/2A
Buy the Traco Power TPP450A – Reliable Medical Power Supply for Industrial Applications
Get the Traco Power TPP 450A series medical power supply today to ensure reliable, safe, and space-efficient power for your critical medical and industrial equipment. Featuring high efficiency, low leakage current, reinforced safety standards, and versatile output options, this power supply is designed for demanding environments. Its compact size and optional forced convection or natural cooling deliver excellent thermal management and noise-free operation. Invest in trusted quality—order online now to benefit from fast delivery, comprehensive safety certifications, and exceptional durability for your applications.
Buy Traco Power TPP 450A now and experience unmatched reliability and performance for your medical devices and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TPP450112AM?
You can click on the BUY or RFQ button to purchase TPP450112AM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP450112AM?
You can download the TPP450112AM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP450112AM?
TRACO POWER
