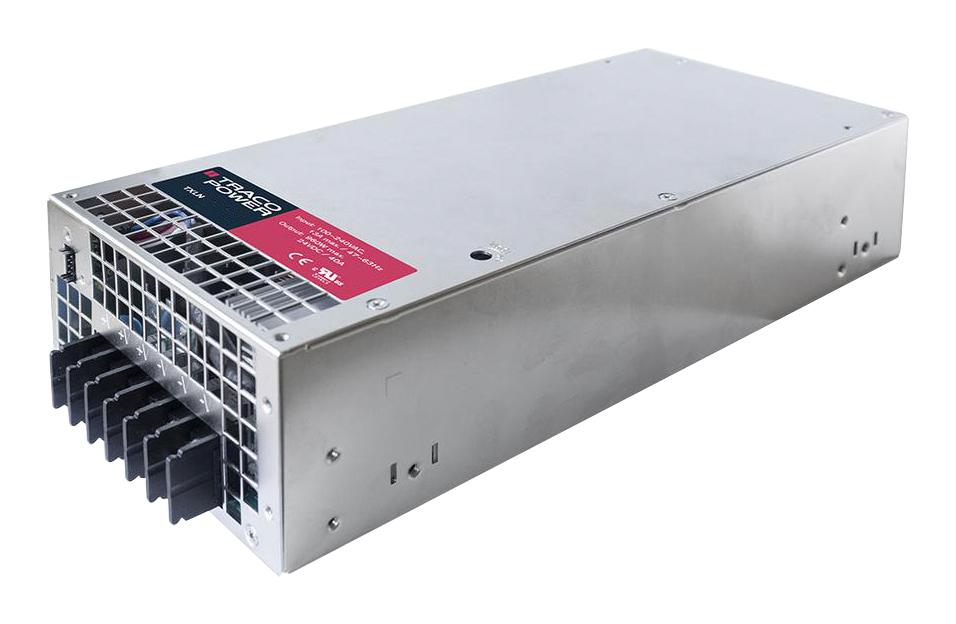

TRACO POWER TXLN960148 Power Supply
The TXLN 960 series is a family of compact, enclosed power supplies suitable for cost-sensitive applications. Featuring a low-profile metal casing and screw terminal connections, they allow for easy installation in various equipment setups. These power supplies support universal input voltage (90-264VAC) and meet European EMC standards as well as the Low Voltage Directive (LVD). Key features include active Power Factor Correction (PFC) above 0.95, high efficiency up to 89%, and compliance with EN 61000-3-2. They offer protection against short circuits, overvoltage, and overload, and hold safety approvals from IEC, EN, and UL 62368-1. The units are built with an aluminum housing, operate within a temperature range of -20°C to +70°C, and have a switching frequency between 55kHz and 65kHz (PWM). They are rated for Protection Class I (requires connection to protective earth), Pollution Degree 2, and Overvoltage Category II. The products come with a three-year warranty.
TRACO POWER TXLN960148 Power Supply Specifications:
- Input Voltage: 90-264 VAC (Full Range), 127-375 VDC (Designed for, no certification)
- Input Frequency: 50-63 Hz
- Input Current at 230 VAC: 6,500 mA max., at 115 VAC: 10,500 mA max.
- Input Inrush Current at 230 VAC: 90 A max., at 115 VAC: 50 A max.
- Power Factor: 0.95 min. at 230 VAC, 0.99 min. at 115 VAC
- Output Power: 960 W
- Output Voltage: 42 VDC (Max. 5 A), 15 VDC (Max. 6.4 A), 24 VDC (Max. 4 A), 48 VDC (Max. 2 A)
- Output Voltage Adjustment: +10%, rated power not exceeded
- Voltage Set Accuracy: 1% max.
- Ripple and Noise: 150 mVp-p (150 mVp-p for 24 V model, 200 mVp-p for 48 V model, 250 mVp-p for 48 V model)
- Hold-up Time at 230 VAC: 16 ms min.
- Start-up Time at 230 VAC: 2000 ms max.
- Short Circuit Protection: Continuous, automatic recovery
- Overload Protection: Constant current mode, 105-135% of rated current
- Overvoltage Protection: 115-140% of nominal Vout
- Efficiency: Up to 89%
- Operating Temperature: -20°C to +70°C
- Cooling System: Forced air cooling with internal fan
- Safety Standards: EN 62368-1, IEC 62368-1, UL 62368-1
- Protection Class: Class I, connection to PE
- Pollution Degree: PD 2
- Over Voltage Category: II
- Isolation Test Voltage: 3000 VAC (output to input), 1800 VAC (input to case), 500 VAC (case to PE)
- Dimensions: not specified but with a compact low-profile aluminum housing
- Weight: 2500 g
Buy the Buy Traco Power TXLN960148 Power Supply Part Number TXLN960148 Online
Experience reliable power delivery with the Traco Power TXLN960148 power supply, featuring universal input, high efficiency up to 89%, and comprehensive protections. Designed for cost-sensitive applications, it ensures safety compliance with EN 62368-1 and UL standards. Its robust aluminum housing and forced air cooling provide durability and efficient heat dissipation. Easy to install via screw terminals, it covers a wide temperature range, operates safely at 960W output, and offers a three-year warranty. Perfect for industrial, automation, and OEM applications, ensuring continuous, safe operation.
Get Traco Power TXLN960148 today—engineered for reliable, cost-effective power supply solutions with high efficiency and safety certifications.
